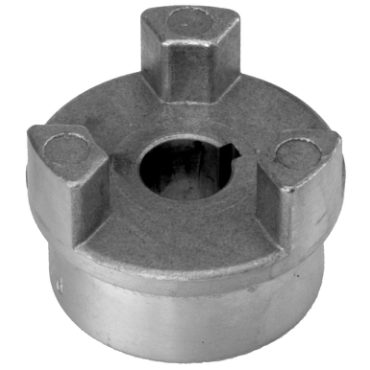

Lovejoy AL090X15MMHUB5 AL Type Finished Bore Jaw Coupling Hub

LOVEJOY
Brand: LOVEJOY
SKU: AL090X15MMHUB5
Availability: Out Of Stock
Call for Pricing Call for pricing (215) 326-9845
Call for Pricing Call for pricing (215) 326-9845
HAVE A QUESTION?

Our team is ready to help!

215-326-9845
  • Voomi Supply

    Secure Payments

  • Voomi Supply

    Easy Returns

  • Voomi Supply

    Expert Advice

  • Voomi Supply

    Fast Shipping

Description

Product Description

The Lovejoy AL090X15MMHUB5 is an AL Type Finished Bore Jaw Coupling Hub. It is designed for use in various mechanical applications requiring efficient power transmission.

  • Lightweight construction
  • Excellent resistance to atmospheric conditions
  • Suitable for corrosive environments

Product Highlights

This coupling hub is mainly made of aluminum, which helps reduce weight while maintaining durability. It connects and transfers torque between shafts in a variety of applications.

Product Information

Standard Information

  • Brand: Lovejoy
  • MPN: AL090X15MMHUB5
Technical Specifications
Rated Power @ 100 rpm
0.23 hp
Coupling Size
AL090
Bore Diameter [Min]
13 mm
Overall Length
59.44 mm
Outside Diameter
38.86 mm
Torque
144 in lb
Depth
1.43 inches
Bore Diameter [Max]
22 mm
Hub Type
2
Keyway Size
5 x 2.3 mm
Hub Diameter
1.53 inches
Coupling Type
Jaw
Bore Type
Finished Bore and Keyway
Rated HP @ 1,200 rpm
2.76 hp
Insert Style
Jaw Type
No. of Jaws
3
Length Through Bore
23.11 mm
Set Screw Size
1/4-20
Rated HP @ 1,800 rpm
4.11 hp
Material
Aluminum
Inch/Metric
Metric
Color
Silver
Rated HP @ 3,600 rpm
8.28 hp
Elastomeric Member
SOX (NBR) Rubber
Max RPM
9000 rpm
Lock Type
Setscrew
Approximate Bore
36.32 mm
Weight
0.25 lb
EAN or UPC
685144586223
