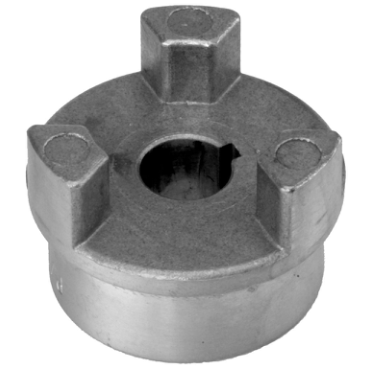

Lovejoy AL075X9/16HUB1/8 AL Series Reborable Jaw Coupling Hub

Product Description

The Lovejoy AL075X9/16HUB1/8 is an AL Series Reborable Jaw Coupling Hub designed to provide reliable performance in various applications. This coupling hub features a bore diameter of nine-sixteenths inches, making it suitable for many industrial settings.

• Lightweight design
• Excellent resistance to atmospheric conditions
• Ideal for corrosive environments

Product Highlights

This coupling includes one setscrew for secure attachment. Its low overhung load makes it efficient and effective in use.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: AL075X9/16HUB1/8

Technical Specifications

• Color: Silver
• No. of Jaws: 3
• Rated HP @ 1,800 rpm: 2.57 hp
• Material: Aluminum
• Bore Dia. [Max]: 7/8 in
• Keyway Size: 1/8 x 1/16
• Torque: 90 in lb
• Length Through Bore: 0.81 in
• Rated HP @ 1,200 rpm: 1.68 hp
• RPM [Max]: 11000 rpm
• Depth: 1.31 in
• Bore Dia. [Min]: 1/4 in
• Outside Dia.: 1.53 in
• Rated Power @ 100 rpm: 0.14 hp
• Hub Type: 2
• Hub Dia.: 1.53 in
• Approximate Bore: 1.31 in
• Rated HP @ 3,600 rpm: 5 1/25 hp
• Elastomeric Member: SOX (NBR) Rubber
• Set Screw Size: 1/4-20
• Coupling Size: AL075
• Overall Length: 2.12 in
• Lock Type: Setscrew
• Coupling Type: Jaw
• Weight: 0.16 LB
• EAN or UPC: 685144106384
