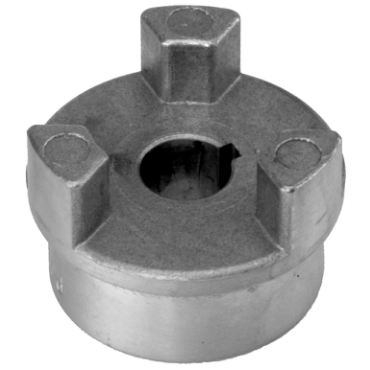

Lovejoy AL075X5/8HUB3/16 AL Type Finished Bore Jaw Coupling Hub

Product Description

The Lovejoy AL075X5/8HUB3/16 is an AL Type Finished Bore Jaw Coupling Hub designed for various machinery applications. This coupling hub securely connects shafts and helps transmit torque efficiently, featuring a lightweight aluminum construction.

• Features three jaws for secure grip
• Designed for use with finished bore and keyway
• Includes one setscrew for installation

Product Highlights

The AL075X5/8HUB3/16 provides a range of benefits including resistance to atmospheric conditions, making it suitable for corrosive environments.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: AL075X5/8HUB3/16
• Availability: Typically ships in 1-3 business days

Technical Specifications

• Max RPM: 11000 rpm
• Coupling Size: AL075
• No. of Jaws: 3
• Lock Type: Setscrew
• Set Screw Size: 1/4-20
• Bore Dia. [Min]: 1/4 in
• Bore Type: Finished Bore and Keyway
• Insert Style: Jaw Type
• Hub Dia.: 1 3/4 in
• Keyway Size: 3/16 x 3/32
• Outside Dia.: 1.53 in
• Bore Dia. [Max]: 7/8 in
• Overall Length: 2.12 in
• Rated HP @ 3,600 rpm: 5 1/25 hp
• Rated HP @ 1,200 rpm: 1.68 hp
• Hub Type: 2
• Rated HP @ 1,800 rpm: 2.57 hp
• Rated Power @ 100 rpm: 0.14 hp
• Length Through Bore: 0.81 in
• Coupling Type: Jaw
• Approximate Bore: 1.31 in
• Material: Aluminum
• Elastomeric Member: SOX (NBR) Rubber
• Depth: 1.31 in
• Torque: 90 in lb
• Inch/Metric: Inch
• Weight: 0.16 lb
• EAN or UPC: 685144106391
