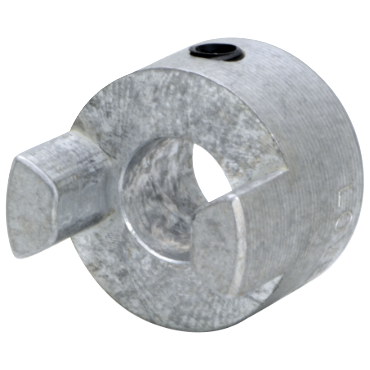

Lovejoy AL070X1/2HUB RSB | AL Series Reborable Jaw Coupling Hub

Product Description

The Lovejoy AL070X1/2HUBRSB is a reborable jaw coupling hub designed for efficient power transmission in various applications. This aluminum coupling features a bore diameter of one-half inch and a length through bore of three-quarters inch, making it suitable for multiple installation scenarios.

• Material: Aluminum
• Torque capacity: Forty-three point two inch pounds
• Maximum RPM: Fourteen thousand

Product Highlights

This coupling hub offers lightweight construction with low overhung load and excellent resistance to atmospheric conditions, making it ideal for corrosive environments.

Product Information

Standard Information

• Brand: Lovejoy
• Part Number: AL070X1/2HUBRSB

Technical Specifications

• Torque: 43.2 in lb
• Set Screw Size: 1/4-20
• Bore Dia. [Min]: 1/4 in
• Bore Dia. [Max]: 3/4 in
• Rated HP @ 1,200 rpm: 0.84 hp
• Rated HP @ 1,800 rpm: 1.23 hp
• Rated HP @ 3,600 rpm: 2.52 hp
• Input Bore Range: 1/2 in to 3/4 in
• Depth: 1.25 in
• Hub Dia.: 1.36 in
• Overall Length: 2 in
• Outside Dia.: 1.36 in
• No. of Jaws: 2
• Material: Aluminum
