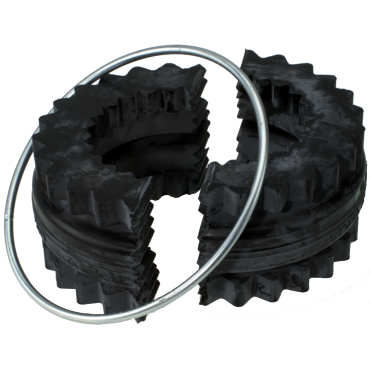

Lovejoy 9NSLEEVE | S-Flex Coupling Sleeve | 9 |

Product Description

The Lovejoy 9NSLEEVE is a S-Flex coupling sleeve designed for versatile applications. This coupling sleeve connects drive systems with reliability and ease.

• Flexible with external teeth
• Easy installation
• Maintenance-free operation

Product Highlights

The Lovejoy S-Flex coupling sleeve dampens vibrations and controls shocks while allowing for torsional flexibility. It has a robust design suitable for various industrial applications.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: 9NSLEEVE

Technical Specifications

• Material: Neoprene
• Sleeve Type: N
• HP @ RPM: 51 hp @ 1800 rpm
• Insert Style: Two Piece
• Length: 1.440 inches
• Color: Black with Green Dot
• Wind-Up Angle @ Nominal Torque: 15 degrees
• Torsional Stiffness: 6875 inch pounds/radian
• Temperature Range [Max]: 200 degrees Fahrenheit
• Torque Rating [Max]: 1800 inch pounds
• Temperature Range [Min]: 0 degrees Fahrenheit
• Coupling Size: 9
• Outside Diameter: 6 inches
• Axial Misalignment: 0.125 inches
• RPM [Max]: 3750 rpm
• Weight: 2.01 pounds
• EAN or UPC: 685144364265
