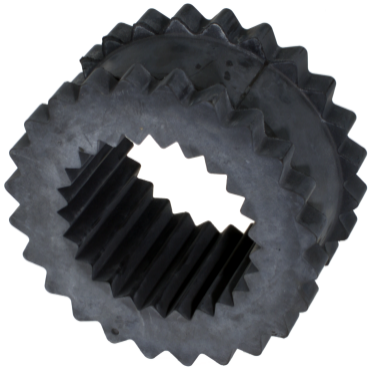

Lovejoy 8JESLEEVE 8JE Sleeve | S-Flex Endurance Shear Type Coupling Inserts

Product Description

The Lovejoy 8JESLEEVE is an advanced coupling insert designed to enhance the performance of shear type couplings. It features EPDM material, which provides durability and resistance to wear. These inserts are intended for use with S-Flex endurance couplings, offering reliability and efficiency for various applications.

• Designed for S-Flex endurance coupling systems
• Made from EPDM for better performance and longevity
• Rated for maximum RPM of 4500

Product Highlights

The 8JE sleeve is a one-piece design suitable for applications requiring enhanced torque and durability.

Product Information

Standard Information

• Brand: Lovejoy
• Part Number: 8JESLEEVE

Technical Specifications

• Insert Style: One Piece
• Color: Black
• Length: 1.130 inches
• Temperature Range [Min]: -30 °F
• Temperature Range [Max]: 275 °F
• Sleeve Type: JE
• RPM [Max]: 4500 rpm
• HP @ RPM: 32 hp @ 1800 rpm
• Torsional Stiffness: 4335 inch pounds/radian
• Coupling Size: 8
• Outside Diameter: 5 1/16 inches
• Torque Rating [Max]: 1135.0 inch pounds
• Material: EPDM
• Weight: 1.02 pounds
• EAN or UPC: 685144355720
