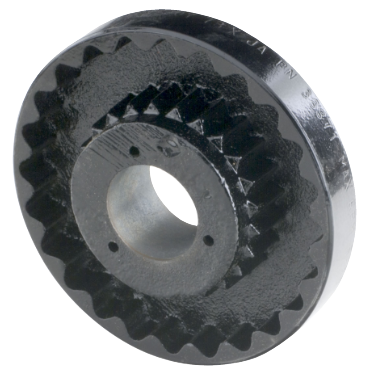

Lovejoy 8BSH 8B SH | S-Flex Coupling Flange

Product Description

The Lovejoy 8BSH is an S-Flex coupling flange designed for reliable operation in various applications. This product features a robust design with internal teeth for easy connection to your systems. The maintenance-free feature eliminates the need for lubrication, simplifying installation and usage.

• Easy to install
• Maintenance-free operation
• Dampens vibrations

Product Highlights

Suitable for high-speed applications, the Lovejoy 8BSH controls shock and provides torsional flexibility.

Product Information

Standard Information

• Brand: Lovejoy
• Part Number: 102131280

Technical Specifications

• Input Bore Range: 1/2 to 1 11/16
• Rated HP @ 1,200 rpm: 22 hp
• Rated HP @ 1,800 rpm: 32 hp
• Rated HP @ 3,600 rpm: 65 hp
• Torque: 128.24 N-m
• RPM [Max]: 4500 rpm
• Bushing Type: QD
• Coupling Size: 8B
