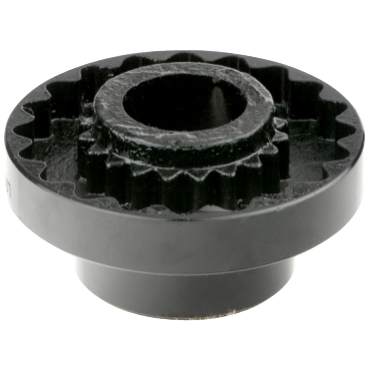

Lovejoy 7SC35SPCR FLNG | S-Flex Spacer Flange

Product Description

The Lovejoy 7SC35SPCR FLNG is a reliable coupling flange designed for effective vibration dampening and shock control. This model is easy to install and maintenance-free, eliminating the need for regular lubrication. Its torsional softness enhances operational smoothness, making it a valuable component in various applications.

• Easy to install
• Maintenance-free operation
• No lubrication required

Product Highlights

This spacer flange is constructed to dampen vibrations and control shock effectively. Suitable for many industrial settings, it enhances the performance of rotating machinery.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: 7SC35SPCR FLNG

Technical Specifications

• Torque: 725 in lb
• Outside Diameter: 4.625 in
• Color: Gray
• Distance Between Shaft Ends: 3 1/2 in
• Rated HP @ 1,200 rpm: 14 hp
• Rated HP @ 1,800 rpm: 21 hp
• Rated HP @ 3,600 rpm: 41 hp
• RPM [Max]: 5250 rpm
• Material: Cast Iron
• Hub Length: 15/32 in
• Overall Width: 1.63 in
• Hub Diameter: 0.47 in
• Coupling Type: Coupling Flange
• Bore Type: Spacer Flange/No Bore
• Bore Range [Max]: 1.625 in
• Coupling Size: 7SC35
• Weight: 2.52 LB
• EAN or UPC: 685144365323
