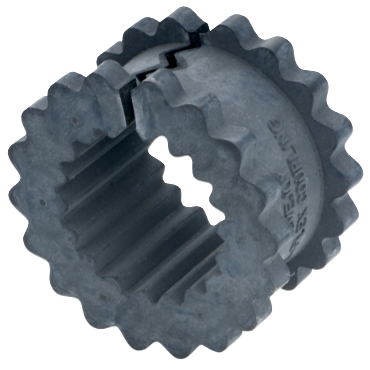

Lovejoy 7JESSLEEVE 7 Coupling Size S-Flex Endurance Shear Type Coupling Inserts

Product Description

The Lovejoy 7JESSLEEVE is an S-Flex Endurance shear type coupling designed to improve performance and reliability. It features EPDM material for long-lasting use under varying conditions. This coupling insert is designed for 7 coupling sizes and meets industry standards.

• Engineered with EPDM for enhanced durability
• Interchanges with standard coupling designs
• Maintains performance in temperatures from -30 °F to 375 °F

Product Highlights

The Lovejoy 7JESSLEEVE excels in high-performance applications, especially in mechanical power transmission. It is a one-piece split style that allows for easy installation and maintenance.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: 7JESSLEEVE

Technical Specifications

• Coupling Size: 7
• Insert Style: One Piece Split
• Material: EPDM
• Outside Diameter: 4.3400 inches
• Length: 1 inch
• Weight: 0.56 lbs
• HP @ RPM: 21 hp @ 1800 rpm
• Temperature Range [Min]: -30 °F
• Temperature Range [Max]: 375 °F
• RPM [Max]: 5250 rpm
• Torque Rating [Max]: 725.0 in lb
• Axial Misalignment: 0.125 inches
• Wind-Up Angle @ Nominal Torque: 15 °
• Torsional Stiffness: 2769 inch pounds/radian
• EAN or UPC: 685144367044
