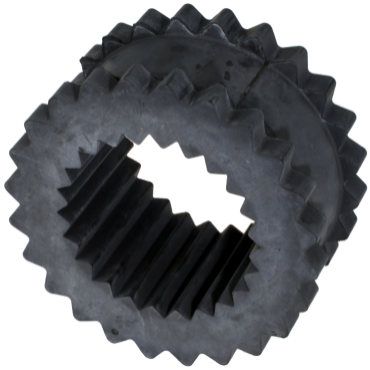

Lovejoy 7JESLEEVE 7JE Sleeve | S-Flex Endurance® Shear Type Coupling Inserts

Product Description

The Lovejoy 7JESLEEVE is an important component for coupling applications. This S-Flex Endurance® shear type coupling insert features EPDM material which provides excellent durability. This sleeve is designed to last longer than earlier versions, offering significant performance in the field. It is interchangeable with industry standards, making it versatile for various installations.

• Durable EPDM construction
• Maximum torque rating of 725 in lb
• Compatible with standard coupling systems

Product Highlights

The Lovejoy 7JESLEEVE is known for its longevity and adaptability in multiple applications.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: 7JESLEEVE

Technical Specifications

• Length: 1 inches
• Outside Diameter: 4.3400 inches
• Coupling Size: 7
• Torque Rating [Max]: 725.0 in lb
• Material: EPDM
• HP @ RPM: 21 hp @ 1800 rpm
• Sleeve Type: JE
• Temperature Range [Min]: -30 °F
• RPM [Max]: 5,250 rpm
• Color: Black
• Torsional Stiffness (Inch Pounds/Radian): 2769
• Wind-Up Angle @ Nominal Torque: 15 °
• Axial Misalignment: 0.125 inches
• Temperature Range [Max]: 375 °F
• Insert Style: One Piece
• Weight: 0.75 LB
• EAN or UPC: 685144355706
