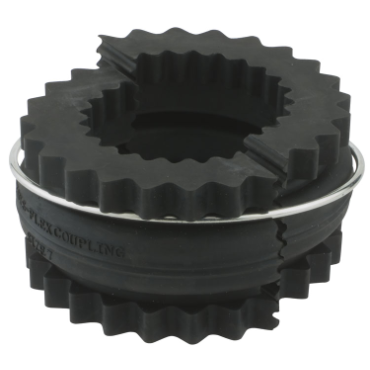

Lovejoy 7ESLEEVE 7E SLEEVE | S-Flex Endurance® Shear Type Coupling Inserts

Product Description

The Lovejoy 7ESLEEVE is an S-Flex Endurance® shear type coupling insert. It features EPDM material designed for high performance. These inserts last significantly longer than previous models, offering durability and reliability in various applications.

• Interchangeable with industry standards
• Designed for optimal performance and longevity
• Various flange sizes and styles available

Product Highlights

This coupling insert supports several applications with high efficiency and minimal downtime.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: 7ESLEEVE

Technical Specifications

• Color: Black
• Insert Style: Two Piece Split w/ Ring
• HP @ RPM: 21 hp @ 1800 rpm
• Max RPM: 5250 rpm
• Wind-Up Angle @ Nominal Torque: 15 °
• Torsional Stiffness: 2769 Inch Pounds/Radian
• Max Temperature Range: 375 °F
• Sleeve Type: E
• Axial Misalignment: 0.125 in
• Coupling Size: 7
• Material: EPDM
• Outside Diameter: 4.3400 in
• Length: 1 in
• Max Torque Rating: 725.0 in lb
• Min Temperature Range: -30 °F
• Weight: 0.63 LB
• EAN or UPC: 685144364142
