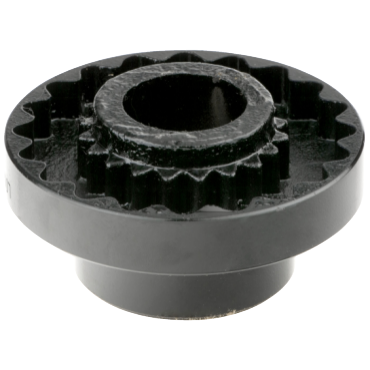

Lovejoy 6SC35SPACERFLANGE S-Flex Spacer Flange

Product Description

The Lovejoy 6SC35SPACERFLANGE is a reliable solution for coupling applications. With an overall width of one point six three inches, this spacer flange supports optimal functionality in various mechanical setups.

• Easy installation process
• Maintenance-free operation
• Strong vibration dampening capabilities

Product Highlights

This spacer flange is designed for use with the Lovejoy S-Flex coupling system. The spacer flange aids in controlling shock and provides torsional flexibility, making it suitable for various machinery.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: 6SC35SPACERFLANGE

Technical Specifications

• RPM [Max]: 6000 rpm
• Rated HP @ 1,200 rpm: 8 3/5 hp
• Bore Type: Spacer Flange/No Bore
• Material: Cast Iron
• Rated HP @ 1,800 rpm: 12.9 hp
• Outside Dia.: 4 in
• Torque: 450 in lb
• Coupling Size: 6SC35
• For Hub: 6SCH
• Rated HP @ 3,600 rpm: 25.7 hp
• Distance Between Shaft Ends: 3 1/2 in
• Bore Range [Max]: 1.375 in
• Coupling Type: Coupling Flange
• Weight: 2.09 lb
• EAN or UPC: 685144365262
