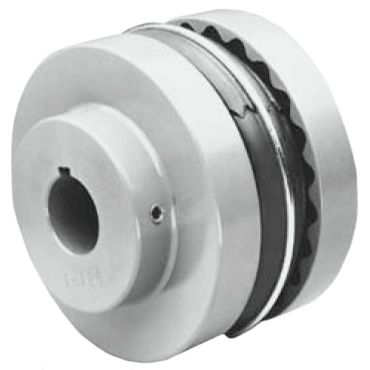

Lovejoy 6S24MM8 Coupling Flange 6S Size 24 mm Bore Size

Product Description

The Lovejoy 6S24MM8 Coupling Flange is designed for effective transmission of power in various mechanical applications. This coupling features internal teeth and is simple to install without any lubrication needs, making it a practical choice for maintenance-free use.

• Internal teeth for secure engagement
• Maintenance-free operation
• Dampens vibration and controls shock

Product Highlights

This coupling provides torsionally soft performance and double engagement for improved reliability in demanding environments.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: 6S24MM8

Technical Specifications

• Length Through Bore: 1.65625 inches
• Material: Cast Iron
• Rated HP @ 1,200 rpm: 8.5 hp
• Outside Diameter: 101.6 mm
• Maximum RPM: 6000 rpm
• Keyway Size: 8 x 3.3
• Bore Diameter (Max): 1.4380 inches
• Bore Size: 0.945 inches - 24 mm
• Torque: 50.84 N-m
• Weight: 2.43 lb
• EAN or UPC: 685144415349
