Product Description

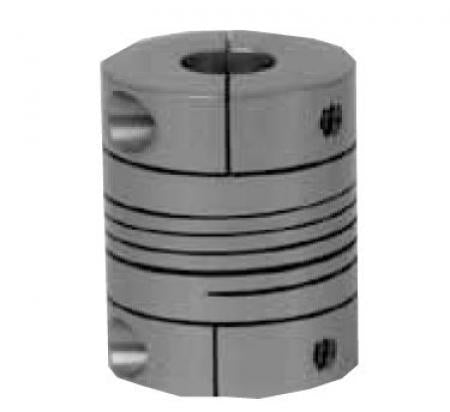

The Lovejoy coupling model 68514456632 is part of the EC series featuring a single beam clamp style. It is designed for a quarter-inch bore and an outside diameter of zero point seven four eight inches. This coupling can handle a maximum speed of ten thousand revolutions per minute and a temperature rating of two hundred degrees Fahrenheit.
- Efficient single beam clamp design
- Zero backlash for reliable performance
- High angular misalignment capability of five degrees
Product Highlights
This coupling is a one-piece design, easy to install and suitable for various applications in power transmission systems.
Product Information
Standard Information
-
Manufacturer: Lovejoy Inc
-
Series: EC Series

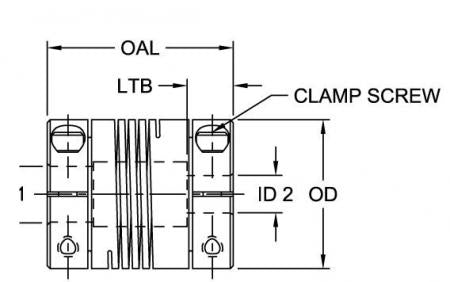

Technical Specifications
-
Bore Diameter: 1/4 inches
-
Maximum Speed: 10000 rpm
-
Torque Rating: 5 in-lb
-
Outside Diameter: 0.748 inches
-
Overall Length: 0.748 inches
-
Temperature Rating: 200 degrees Fahrenheit
-
Length Through Bore: 0.197 inches
-
Material: Anodized Aluminum
