Lovejoy 68514444713 L050 HUB 7/16 3/32X3/64KW

Product Description

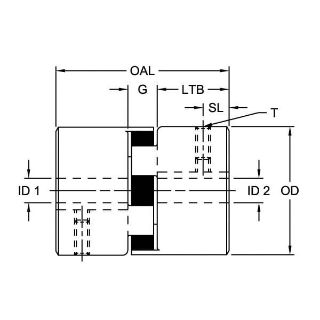

Lovejoy Jaw Coupling Hub is model number 68514444713. This coupling is part of the L050 series featuring a bore diameter of seven-sixteenths inches. The hub has a diameter of one point zero eight inches and a length of one point one inches. It is made of sintered iron which contributes to its durability and reliability.

• Fail-safe design allows operation even if elastomer fails.
• Resistant to oil, dirt, sand, moisture, and grease.
• Over 850,000 combinations of bore sizes available.

Product Highlights

This coupling is designed for power transmission applications where durability and flexibility are important.

Product Information

Standard Information

• Brand: Lovejoy
• Manufacturer: Lovejoy

Technical Specifications

• Bore Diameter: 7/16 in
• Hub Diameter: 1.08 in
• Hub Length: 1.1 in
• Keyway Size: 3/32 in W x 3/64 in D
• Length Through Bore: 0.62 in
• Material: Sintered Iron
• Maximum Speed: 18000 rpm
• Screw Size: 1/4-20
• Type: Type L Style 1
• Country of Origin: US
