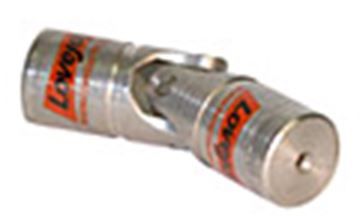

Lovejoy 68514444600 D10B UJNT 3/4X3/4 KW&SS BE LOV

Product Description

The Lovejoy 68514444600 is a Type D Pin and Block Universal Joint designed for heavy-duty applications. This joint has a bore size of 0.75 inches diameter by 1.08 inches depth and can handle operations at a maximum speed of 1750 rpm. It is manufactured with steel material for durability and features standard pin and block design.

• Ideal for applications with angles up to 25 degrees
• Includes boot retaining grooves for improved functionality
• Requires lubrication and boots for optimal wear, available separately

Product Highlights

This universal joint is an industry standard and perfect for various power transmission tasks.

Product Information

Standard Information

• Brand: Lovejoy
• Manufacturer: Lovejoy

Technical Specifications

• Bore Size: 0.75 in Dia x 1.08 in D
• Maximum Speed: 1750 rpm
• Overall Length: 4-1/4 in
• Pin Height: 2.12 in
• Joint Diameter: 1-1/2 in
• Maximum Misalignment Angle: 25 deg
• Torque Rating: 7920 in-lb Static
• Finish: Metallic
• Size: D10B
