Lovejoy 68514437074 L095 HUB 3/4 *1/8X1/16 KW LOV

Product Description

The Lovejoy MPN 68514437074 is an elastomeric coupling hub designed for reliable performance in various applications. This hub features a three-fourth inch bore and a diameter of two point eleven inches, making it a versatile choice for power transmission tasks.

• Durable sintered iron construction
• Keyway dimensions of one-eighth inch width by one-sixteenth inch depth
• Maximum operating speed of nine thousand RPM

Product Highlights

This coupling hub remains functional even if the elastomer fails, ensuring continued operation without metal-to-metal contact. It is resistant to oil, dirt, moisture, and grease, with the ability to accommodate over eight hundred fifty thousand combinations of bore sizes.

Product Information

Standard Information

• Brand: Lovejoy
• Type: Type L Style 1

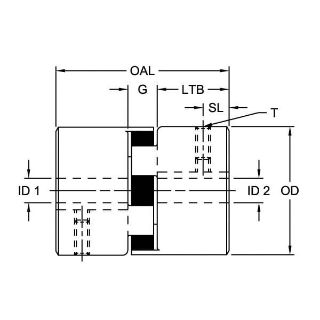

Technical Specifications

• Bore Diameter: 3/4 in
• Hub Diameter: 2.11 in
• Hub Length: 1.52 in
• Keyway Size: 1/8 in W x 1/16 in D
• Length Through Bore: 1 in
• Material: Sintered Iron
• Maximum Speed: 9000 RPM
• Screw Size: 5/16-18
• Country of Origin: US
