Lovejoy 68514435572 8JE SLEEVE LOV 1-Piece Solid 68514435572

Product Description

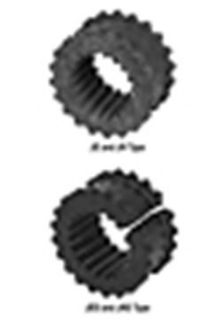

The Lovejoy 68514435572 is a one-piece solid elastomer sleeve designed for use in S-Flex Endurance couplings. It measures two and a half inches in length with a maximum outer diameter of five point six inches. This elastomer sleeve operates efficiently at up to four thousand five hundred RPM, providing reliable torque transmission.

• One-piece solid design for easy installation.
• Wide temperature range from negative thirty to three hundred seventy-five degrees Fahrenheit.
• Compatible with S-Flex Endurance couplings.

Product Highlights

This elastomer sleeve is molded from EPDM, providing good chemical resistance while offering protection against shock loading and vibration. Its pre-molded teeth ensure a secure connection to the coupling flanges.

Product Information

Standard Information

• Manufacturer: Lovejoy
• Part Number: 68514435572

Technical Specifications

• Coupling Size: 8JE
• Material: EPDM
• Length: 2-1/2 inches
• Inside Diameter: 0.75 to 1.938 inches
• Outside Diameter: 5.06 inches
• Maximum Speed: 4500 RPM
• Torque Rating: 1475 in-lb
• Temperature Rating: -30 to 375 degrees Fahrenheit
