Lovejoy 68514431057 D4-UJ-SS-SOLIDXSOLID 3/4 in

Product Description

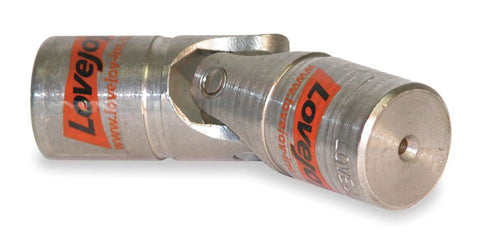

Lovejoy Universal Joint, MPN 68514431057, is a Type D Solid Bore Pin and Block with a D4 size. This joint features a bore size of zero point six two inches diameter by zero point eight eight inches deep and a joint diameter of three quarters inch. It handles a static torque of five hundred twelve in-lbs and supports a maximum speed of one thousand seven hundred fifty rpm. The overall length measures two point six eight inches, and the pin height is one point three four inches. With a maximum misalignment angle of twenty-five degrees, this joint is made from 303 stainless steel, making it suitable for various industrial applications.

• Designed for corrosive environments and sanitation requirements.
• Boot retaining grooves come standard.
• Requires lubrication for optimal performance and longevity.

Product Highlights

This universal joint is ideal for machinery needing reliable connection in challenging conditions.

Product Information

Standard Information

• Manufacturer: Lovejoy Inc
• Type: Type D Solid Bore Pin and Block

Technical Specifications

• Bore Size: 0.62 in Dia x 0.88 in D
• Joint Diameter: 3/4 in
• Material: 303 Stainless Steel
• Maximum Misalignment Angle: 25 deg
• Maximum Speed: 1750 rpm
• Overall Length: 2.68 in
• Pin Height: 1.34 in
• Torque Rating: 512 in-lb Static
