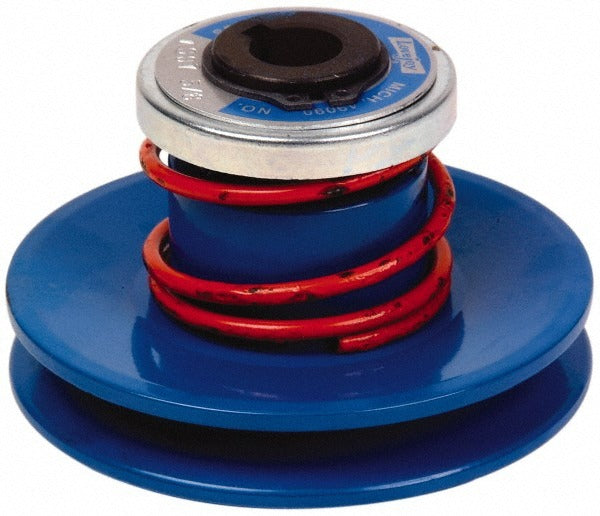

Lovejoy 68514427817 Variable Speed Pulley 3.75in

Product Description

The LOVEJOY 68514427817 is a spring loaded variable speed pulley designed for use in belt-driven mechanical power transmission systems. It features a 3.75-inch maximum pitch diameter, 4-inch outside diameter, and a 0.75-inch bore with a 3/16 x 3/32 inch keyway. The pulley adjusts automatically under load, allowing variable speed output without manual belt adjustment. At 1750 RPM, it handles up to 0.5 horsepower, and at 1150 RPM it is rated for 0.333 horsepower. It is part of the Econoline series and accepts A-series V-belts. Installation and maintenance are typically handled by HVAC technicians or mechanical trades familiar with belt-drive equipment.

This variable speed pulley is suited for light-duty commercial and residential fan drive applications where motor speed must vary across a defined range. The spring-loaded design allows the sheave faces to separate or close in response to belt tension changes, shifting the effective pitch diameter. Common applications include belt-driven blower assemblies, ventilation fans, and similar equipment that requires variable airflow without electronic variable frequency drives. The Econoline series is a cost-effective option for standard A-belt configurations.

Key Features

• Spring-loaded design provides automatic variable speed adjustment without manual repositioning
• Accepts A-series V-belts for broad belt availability
• Minimum pitch diameter of 1.62 inches for a wide speed range
• 0.75-inch bore with included 3/16 x 3/32 inch keyway for positive shaft engagement
• Rated 0.5 horsepower at 1750 RPM and 0.333 horsepower at 1150 RPM
• Part of the Econoline series for standard light-duty drive applications

Compatibility

Designed for use with A-series V-belts in belt-driven blower and fan drive assemblies requiring variable speed output. Confirm bore size, belt series, and horsepower requirements before installation.

Installation Notes

Installation is typically performed by HVAC technicians or millwrights familiar with belt-drive power transmission. Disconnect and lock out electrical power to the motor before removing or installing the pulley. Confirm shaft diameter and keyway dimensions match before pressing or mounting the sheave. Belt tension should be set according to the belt manufacturer specifications for A-series drives after installation.
