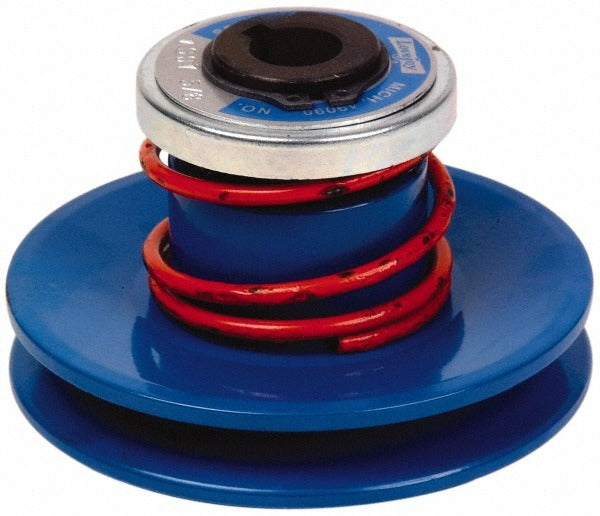

Lovejoy 68514427806 Variable Speed Pulley Econoline

Product Description

The LOVEJOY 68514427806 is a spring loaded variable speed pulley in the Econoline series, designed for use in belt-driven mechanical drive systems. This pulley automatically adjusts its pitch diameter under load, allowing variable speed output without manual adjustment. It accepts A-series belts and is rated at 0.333 horsepower at 1750 RPM and 1/4 horsepower at 1150 RPM. The unit measures 2.81 inches in length, with a maximum pitch diameter of 3.13 inches, an outside diameter of 3.38 inches, and a minimum pitch diameter of 1.62 inches. Installation does not require a keyway. At 2.13 pounds, this pulley is a compact, self-contained drive component suited for light-duty variable speed applications.

This pulley is used in residential and light commercial HVAC equipment, fans, blowers, and other belt-driven machinery where variable speed control is needed without electronic or manual intervention. The spring-loaded mechanism responds to load changes automatically, making it a practical fit for systems that require consistent output speed across varying conditions. It is typically installed by HVAC technicians or mechanical drive technicians during new equipment builds or drive system retrofits.

Key Features

• Spring-loaded pitch adjustment for automatic variable speed operation
• Rated 0.333 HP at 1750 RPM and 0.25 HP at 1150 RPM
• Compatible with A-series belts
• No keyway required for installation
• Compact at 2.81 inches long with a 3.38 inch outside diameter
• Econoline series construction for light-duty drive applications

Compatibility

Designed for use with A-series belts in light-duty variable speed belt drive systems. No specific model compatibility was provided in the product data.

Installation Notes

Installation is performed by qualified HVAC or mechanical drive technicians. Always de-energize and lock out the equipment before servicing any belt drive component. Ensure the pulley bore matches the shaft diameter before mounting, and verify belt alignment after installation to prevent premature wear. Refer to applicable ANSI or OSHA guidelines for mechanical power transmission safety.
