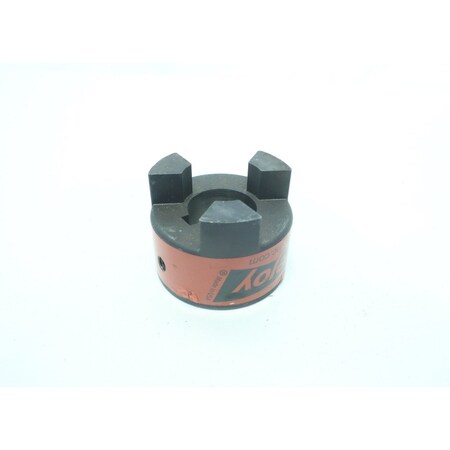

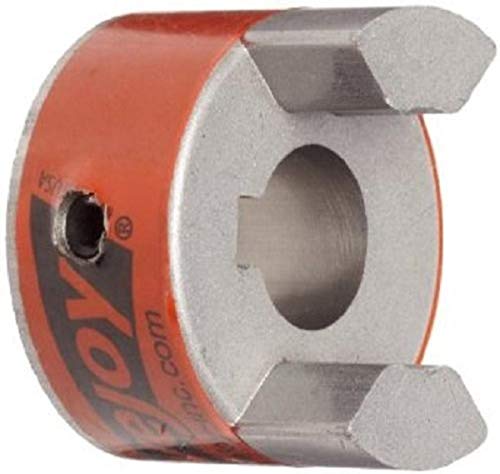

Lovejoy 68514411749 L110 Jaw Coupling Hub Power 1-5/8 Inch 3/8x3/16KW

Product Description

The Lovejoy 68514411749 L110 Jaw Coupling Hub is designed for reliable power transmission in various industrial applications. This coupling hub features a bore size of one and five-eighths inches and is made from sintered iron, ensuring durability and strength. It operates efficiently without lubrication, as there is no metal-to-metal contact. The couplings protect equipment from damage even if the elastomer fails, making them a safe choice for power transmission.

• Keyway size is three-eighths inch by three-sixteenths inch.
• To complete a standard L110 coupling, purchase two L110 hubs and one L110 elastomer.
• Meets AGMA, SAE, and DIN standard bore-keyway combinations.

Product Highlights

This hub is versatile for use in many fields including power transmission systems, conveyors, and industrial machinery.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: 68514411749

Technical Specifications

• Bore Diameter: 1-5/8 inches
• Coupling Size: L110
• Hub Diameter: 3.32 inches
• Hub Length: 2.56 inches
• Keyway Size: 3/8 inch W x 3/16 inch D
• Length Through Bore: 1.68 inches
• Material: Sintered Iron
• Maximum Speed: 5000 RPM
• Screw Size: 3/8-16
