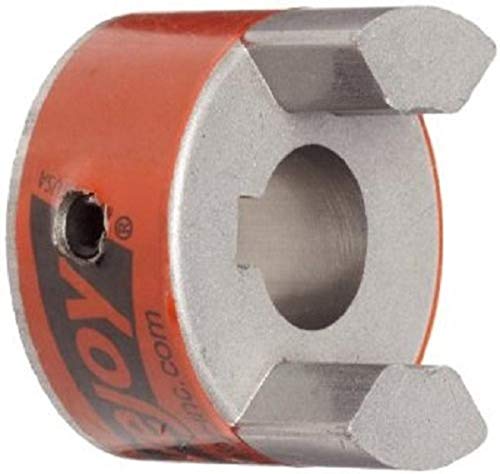

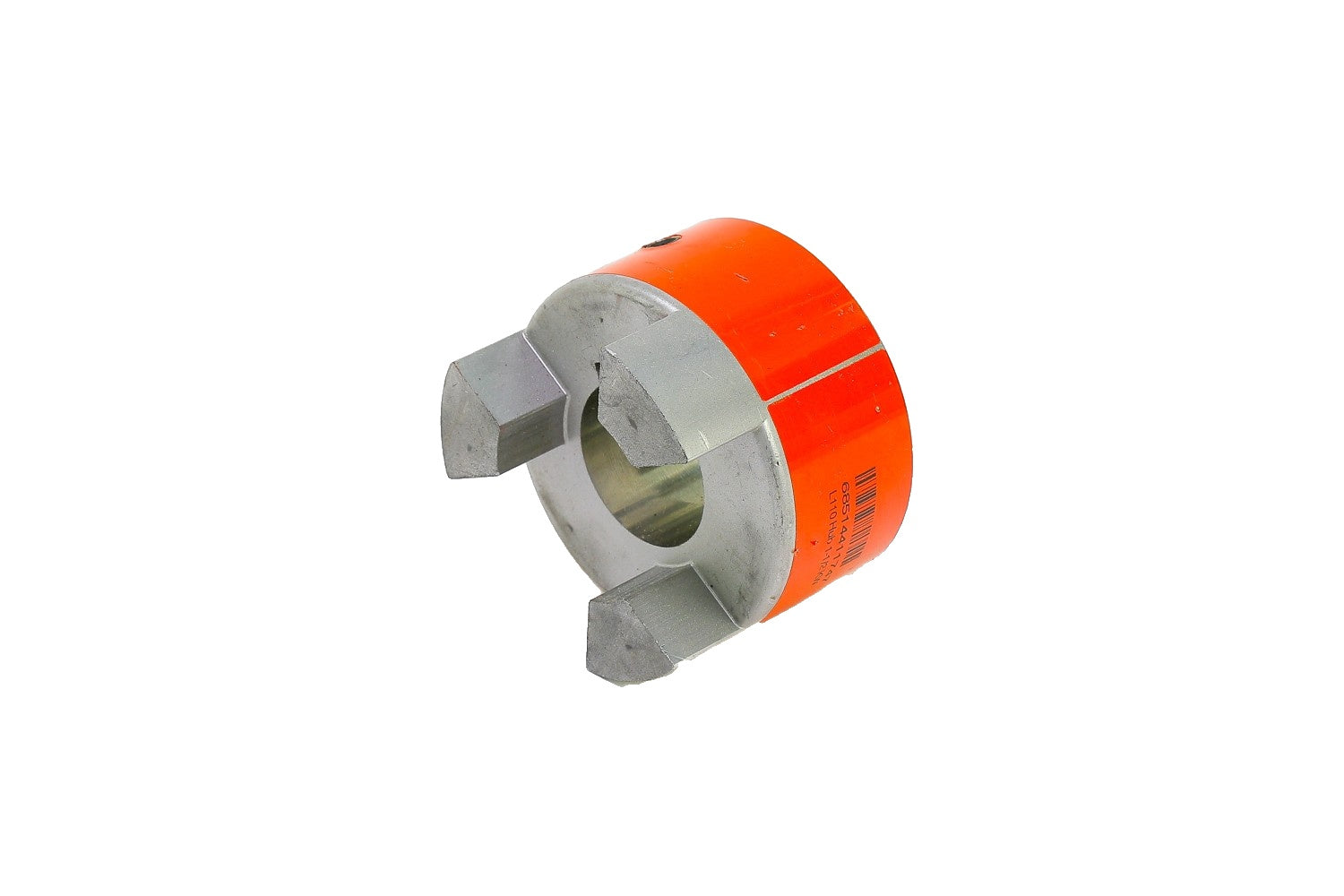

Lovejoy 68514411747 L110 Standard Jaw Coupling Hub Sintered Iron 1.5 Inch Bore 2268 in-lbs Torque

Product Description

The Lovejoy 68514411747 L110 Jaw Coupling Hub is a premier solution for robust power transmission applications, crafted from high-quality sintered iron. Specifically designed to cater to industrial needs, this coupling hub features a bore size of 1.5 inches and offers a maximum nominal torque of 2268 in-lbs.

• Includes a keyway size of 0.375 inches by 0.188 inches for secure attachment.
• Combines with other L110 parts to complete the coupling assembly.
• Known for its durability and fail-safe operation ensuring continuous performance even if the elastomer fails.

Product Highlights

Lovejoy's L110 series represents the industry benchmark in jaw coupling technology, enhancing mechanical reliability and simplification in assembly.

Technical Specifications

• Material: Sintered Iron
• Bore Size: 1.5 inches
• Outer Diameter: 3.32 inches
• Length Through Bore: 1.68 inches
• Keyway: 0.375 inches x 0.188 inches
• Max Torque: 2268 in-lbs
