Lovejoy 68514411740 L110 HUB 1-1/16 1/4X1/8 KW LOV

Product Description

The Lovejoy 68514411740 is a Type L Style 1 Jaw Coupling Hub designed for reliable performance in various applications. This coupling hub features a bore diameter of one and one-sixteenth inches and a hub diameter of three point thirty-two inches. It is made from sintered iron and is capable of withstanding a maximum speed of five thousand revolutions per minute.

• Fail safe performance even if elastomer fails.
• Resistant to oil, dirt, sand, moisture, and grease.
• Over eight hundred fifty thousand combinations of bore sizes available.

Product Highlights

This Lovejoy coupling hub is suitable for use in a wide range of industrial applications where secure power transmission is required.

Product Information

Standard Information

• Manufacturer: Lovejoy
• Type: Type L Style 1

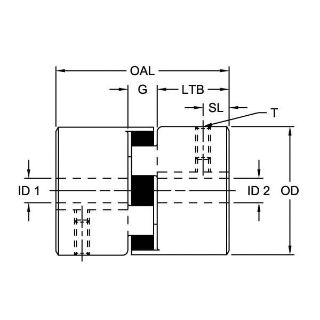

Technical Specifications

• Bore Diameter: 1-1/16 in
• Hub Diameter: 3.32 in
• Hub Length: 2.56 in
• Keyway Size: 1/4 in W x 1/8 in D
• Length Through Bore: 1.68 in
• Maximum Speed: 5000 rpm
• Screw Size: 3/8-16
• Material: Sintered Iron
