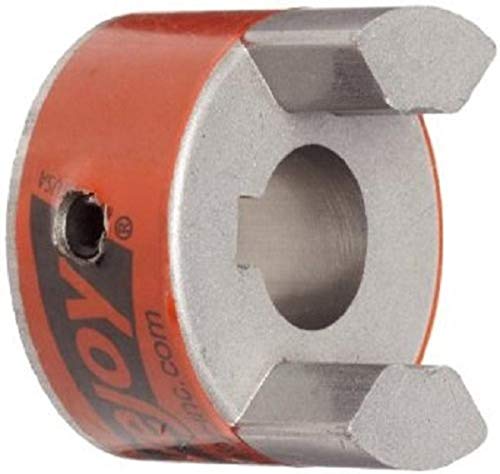

Lovejoy 68514411093 Jaw Coupling Hub 1.125 Bore 2.11 OD 1 Length Through Bore

Product Description

The Lovejoy 68514411093 is a jaw coupling hub designed for compatibility with Lovejoy's L type jaw style flexible couplings. It is constructed from sintered iron for enhanced strength and durability. This coupling hub effectively transfers shock and misalignment from the shaft to the center element, reducing wear on the shaft assembly.

• Compatible with Lovejoy L type jaw style flexible couplings
• Sintered iron for strength, durability, and corrosion resistance
• Reduces wear on shaft assembly by transferring shock and misalignment

Product Highlights

This jaw coupling hub is intended for use in industrial power transmission applications, including compressors, blowers, pumps, conveyors, mixers, and gearboxes. The flexible coupling design helps to connect two rotating shafts that are not aligned, transmitting rotational power while accommodating shaft misalignment.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: 68514411093

Technical Specifications

• Bore Diameter: 1-1/8 in
• Coupling Size: L095
• Finish: Metallic
• Hub Diameter: 2.11 in
• Hub Length: 1.52 in
• Keyway Size: 1/4 in W x 1/8 in D
• Length Through Bore: 1 in
• Material: Sintered Iron
• Maximum Speed: 9000 rpm
• Screw Size: 5/16-18
