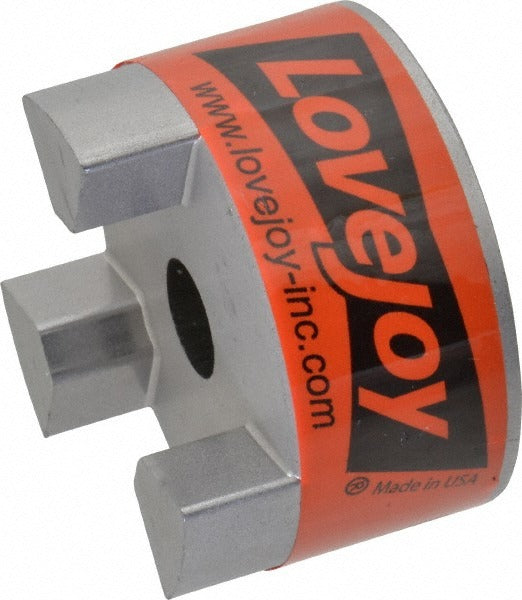

Lovejoy 68514411083 Flexible Coupling Hub L095 Sintered Iron

Product Description

The LOVEJOY 68514411083 is a flexible coupling hub designed for use in mechanical power transmission assemblies. Manufactured from sintered iron, this hub is part of the L095 series and accepts a minimum bore diameter of 0.438 inches. It measures 2.5 inches overall length with a 2.11 inches outside diameter. The hub is rated at 194 inch-pounds of torque, making it suitable for moderate-duty drive shaft connections in industrial and mechanical service applications. Installation is performed by licensed millwrights, maintenance mechanics, and industrial service technicians working on coupled drive systems.

This coupling hub is used in light-to-moderate industrial drive train setups where vibration dampening and misalignment tolerance are required. The L095 series is a standard jaw-style flexible coupling configuration. A complete coupling assembly requires two hubs and one spider insert, which must be ordered separately. Typical applications include pump drives, compressor connections, conveyor systems, and general mechanical power transmission setups in both commercial and light industrial environments.

Key Features

• Sintered iron construction provides durability in mechanical drive applications
• L095 series coupling size for standardized interchangeability
• Rated at 194 inch-pounds torque capacity
• Minimum bore diameter of 0.438 inches accommodates standard shaft sizes
• 2.5 inches overall length fits compact drive configurations
• Two hubs plus one spider required for a complete coupling assembly

Compatibility

Designed for use within the L095 series jaw-style flexible coupling system. A complete coupling requires two hubs and one spider insert ordered separately. Compatible with shafts with a minimum bore diameter of 0.438 inches.

Installation Notes

Installation is typically performed by a qualified millwright or mechanical technician. Disconnect and lock out all power to the drive system before beginning any coupling work, following OSHA lockout/tagout procedures. Ensure shaft and hub bores are clean and free of burrs before pressing or sliding the hub into position. Do not operate the coupling without the spider insert properly seated between both hubs.
