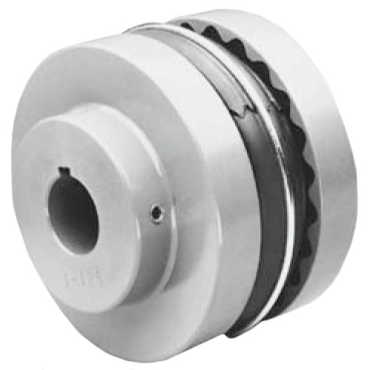

Lovejoy 5S24MM8 S-Flex Coupling Flange w/ Keyway

Product Description

The Lovejoy 5S24MM8 is a S-Flex coupling flange designed with a keyway for easy installation. This product features internal teeth that enhance its capability to dampen vibration and control shock. Maintenance-free operation is possible as it does not require lubrication. This coupling flange is torsionally soft, allowing for double engagement.

• Easy installation with keyway design
• Maintenance-free operation
• Effective vibration damping

Product Highlights

The Lovejoy 5S24MM8 is suitable for a variety of applications, making it an essential component for mechanical assemblies.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: 5S24MM8

Technical Specifications

• Hub Length: 7/16 inches
• Length Through Bore: 1.3125 inches
• Bore Type: Finished Bore
• Outside Diameter: 82.55 mm
• Set Screw Size: 1/4-20
• Bore Size: 0.945 inches - 24 mm
• Material: Cast Iron
• Rated HP at 3,600 RPM: 13.7 hp
• Set Screw: Yes
• Lock Type: Setscrew
• Max RPM: 7600
• Keyway Size: 8 x 3.3
• Rated Power at 100 RPM: 2/5 hp
• Weight: 1.11 lb
• EAN or UPC: 685144415196
