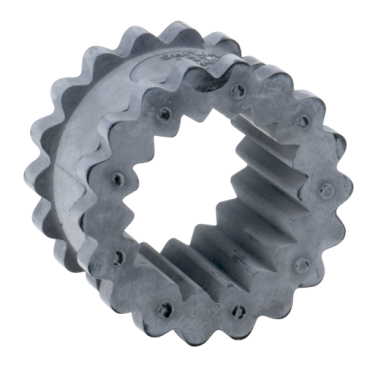

Lovejoy 5JNSLEEVE 5JN Sleeve | S-Flex Coupling Sleeve

Product Description

The Lovejoy 5JNSLEEVE is a flexible S-Flex coupling sleeve designed to fit various applications. Its construction allows for easy installation and requires no lubrication, which reduces maintenance time. This coupling sleeve effectively dampens vibrations and controls shock, making it ideal for use in machinery with moving parts.

• Flexible with external teeth
• Easy to install
• Maintenance-free design

Product Highlights

The 5JNSLEEVE is made from durable neoprene material and is designed for high torque applications. It ensures reliable performance in various temperature ranges, making it suitable for both indoor and outdoor environments.

Product Information

Standard Information

• Brand: Lovejoy
• Part #: 102133109

Technical Specifications

• Torque Rating [Max]: 240 in lb
• Temperature Range [Min]: 0 °F
• Temperature Range [Max]: 200 °F
• Torsional Stiffness: 916 Inch Pounds/Radian
• Axial Misalignment: 0.125 in
• Material: Neoprene
• Wind-Up Angle @ Nominal Torque: 15 °
• HP @ RPM: 6.9 hp @ 1800 rpm
• RPM [Max]: 7600 rpm
• Outside Diameter: 2.94 in
• Sleeve Type: JN
• Insert Style: One Piece
• Length: 3/4 in
• Weight: 0.3 LB
• EAN or UPC: 685144353665
