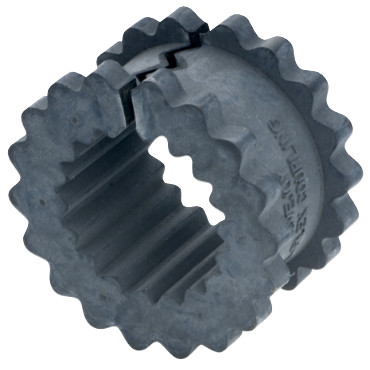

Lovejoy 5JESSLEEVE JES Sleeve | S-Flex Endurance Shear Type Coupling Inserts

Product Description

The Lovejoy 5JESSLEEVE is part of the S-Flex Endurance series, designed for shear type coupling applications. These EPDM inserts outlast previous designs and provide reliable performance. The sleeves are interchangeable with the industry standard, ensuring compatibility across various setups. Flange sizes and styles are readily available online.

• Durable EPDM material for extended use
• Interchangeable with standard coupling designs
• Effective for a wide range of operating conditions

Product Highlights

The 5JESSLEEVE is designed for optimal performance in industrial applications, particularly in shear type couplings.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: 5JESSLEEVE

Technical Specifications

• Temperature Range [Min]: -30 °F
• Temperature Range [Max]: 375 °F
• Outside Diameter: 2.9400 inches
• Coupling Size: 5
• HP @ RPM: 6.9 hp at 1800 rpm
• Material: EPDM
• Axial Misalignment: 0.125 inches
• Wind-Up Angle @ Nominal Torque: 15 °
• Insert Style: One Piece Split
• Length: 3/4 inches
• Max RPM: 7,600 rpm
• Torsional Stiffness: 916 inch pounds/radian
• Torque Rating [Max]: 240.0 inch lb
• Weight: 0.25 lb
• EAN or UPC: 685144366986
