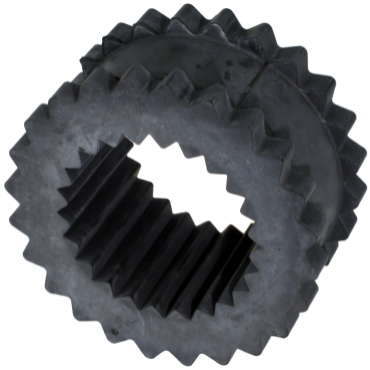

Lovejoy 4JESLEEVE 4JE Sleeve | S-Flex Endurance® Shear Type Coupling Inserts

Product Description

The Lovejoy 4JESLEEVE is an S-Flex Endurance® shear type coupling insert designed for high performance in demanding applications. This insert is made from EPDM material, known for its durability and resilience. It is engineered to last at least three times longer than previous designs. The interchangeable design makes it compatible with standard flange sizes.

• High-performance EPDM material
• Interchangeable with industry standards
• Suitable for various applications

Product Highlights

The Lovejoy 4JESLEEVE provides reliable operation and extended lifespan, perfect for use in mechanical systems requiring robust coupling inserts.

Product Information

Standard Information

• Brand: Lovejoy
• Part Number: 102118756

Technical Specifications

• Color: Black
• HP @ RPM: 3.4 hp @ 1800 rpm
• Length: 0.630 inches
• Torque Rating [Max]: 120.0 in lb
• RPM [Max]: 7,600 rpm
• Torsional Stiffness: 458 inch pounds/radian
• Temperature Range [Max]: 375 °F
• Coupling Size: 4
• Insert Style: One Piece
• Outside Diameter: 2.3100 inches
• Axial Misalignment: 0.125 inches
• Material: EPDM
• Temperature Range [Min]: -30 °F
• Wind-Up Angle @ Nominal Torque: 15 °
• Sleeve Type: JE
• Weight: 0.13 lbs
• EAN or UPC: 685144353597
