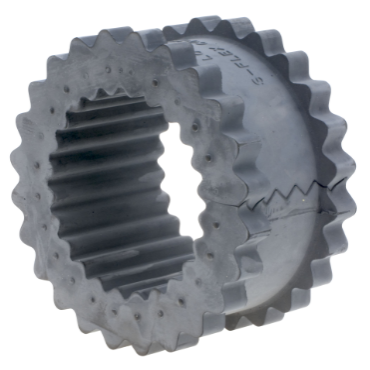

Lovejoy 3JNSSLEEVE S-Flex Coupling Sleeve each

Product Description

The Lovejoy 3JNSSLEEVE is a S-Flex Coupling Sleeve designed for flexible power transmission. This sleeve features external teeth that aid in easy installation and is maintenance-free, needing no lubrication. It also dampens vibrations, controls shock, and provides torsional softness, making it ideal for various applications in machinery and equipment.

• Flexible with external teeth
• Maintenance-free operation
• Dampens vibration and controls shock

Product Highlights

The 3JNSSLEEVE is perfect for use in mechanical systems where alignment issues may occur. Its double engagement design allows for efficient torque transmission.

Product Information

Standard Information

• Brand: Lovejoy
• Part Number: 3JNSSLEEVE

Technical Specifications

• Sleeve Type: JNS
• Length: 0.440 inches
• Color: Black with Green Dot
• Axial Misalignment: 0.125 inches
• Wind-Up Angle @ Nominal Torque: 15 degrees
• Maximum RPM: 9200 rpm
• Torsional Stiffness: 229 inch pounds/radian
• Material: Neoprene
• Torque Rating (Max): 60 inch lb
• Horsepower @ RPM: 1.7 hp @ 1800 rpm
• Coupling Size: 3
• Temperature Range (Max): 200 degrees Fahrenheit
• Temperature Range (Min): 0 degrees Fahrenheit
• Outside Diameter: 1.88 inches
• Weight: 0.09 lb
• EAN or UPC: 685144368669
