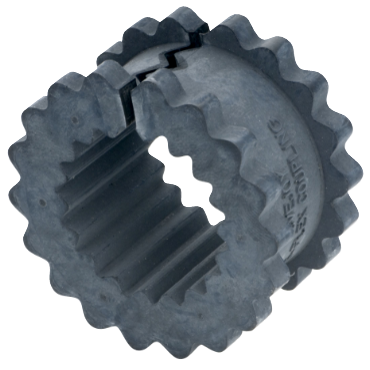

Lovejoy 3JESSLEEVE 3 JES Sleeve | S-Flex Endurance Shear Type Coupling Inserts

Product Description

The Lovejoy 3JESSLEEVE is a JES sleeve with enhanced performance. This sleeve features S-Flex Endurance shear type coupling inserts made from EPDM material. These inserts provide increased durability, lasting significantly longer than previous designs. They are interchangeable with industry-standard components, ensuring compatibility across various applications.

• High performance with EPDM material
• Interchangeable with industry standards
• Available in multiple flange sizes and styles

Product Highlights

The Lovejoy 3JESSLEEVE is ideal for various coupling applications. It supports high RPMs and includes features such as axial misalignment tolerance.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: 3JESSLEEVE

Technical Specifications

• HP @ RPM: 1.7 hp @ 1800 rpm
• RPM [Max]: 9,200 rpm
• Torque Rating [Max]: 60.0 in lb
• Length: 0.440 in
• Wind-Up Angle @ Nominal Torque: 15 °
• Sleeve Type: JES
• Insert Style: One Piece Split
• Axial Misalignment: 0.125 in
• Coupling Size: 3
• Color: Black
• Temperature Range [Min]: -30 °F
• Outside Dia.: 1.8800 in
• Torsional Stiffness (Inch Pounds/Radian): 229
• Temperature Range [Max]: 375 °F
• Material: EPDM
• Weight: 0.08 LB
• EAN or UPC: 685144366924
