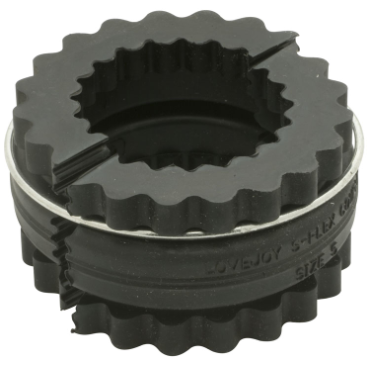

Lovejoy 13ESLEEVE 13 E Sleeve | S-Flex Endurance Shear Type Coupling Inserts

Product Description

The Lovejoy 13ESLEEVE is a durable coupling insert designed for S-Flex Endurance shear type applications. It meets industry standards and features EPDM material for enhanced performance. This coupling insert outperforms previous designs by lasting three times longer. It is interchangeable with various flange sizes and styles that are readily available online.

• Durable EPDM construction
• Interchangeable with industry standards
• Versatile for various flange sizes

Product Highlights

The Lovejoy 13 E Sleeve is designed for reliable performance in high torque applications.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: 13ESLEEVE

Technical Specifications

• Sleeve Type: E
• HP @ RPM: 324 hp @ 1800 rpm
• Insert Style: Two Piece Split w/ Ring
• Axial Misalignment: 0.125 in
• RPM [Max]: 2400 rpm
• Length: 2.690 in
• Wind-Up Angle @ Nominal Torque: 15 °
• Color: Black
• Temperature Range [Max]: 375 °F
• Torsional Stiffness (Inch Pounds/Radian): 3350
• Material: EPDM
• Temperature Range [Min]: -30 °F
• Torque Rating [Max]: 11350.0 in lb
• Outside Dia.: 11.1900 in
• Coupling Size: 13
• Weight: 13.0 LB
• EAN or UPC: 685144354648
