Product Description

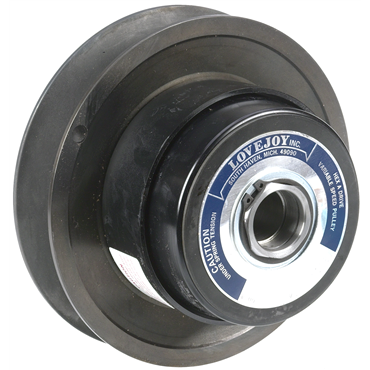

The Lovejoy 11401X7/8PULLEY is a spring-loaded driver pulley designed for various mechanical applications. It has a versatile adjustable center drive type and an outside diameter of six inches. This pulley is suitable for use in agricultural machinery, food packaging, air handling systems, textile spinning frames, mixers, pumps, and machine tools.
- Adjustable center design for flexible use
- Maintenance-free operation for long-lasting performance
- Hex center shaft eliminates drive keys
Product Highlights
This driver pulley offers a maintenance-free design with cast iron flanges, ensuring a long-wearing contact area. The shaft surface is covered with a resilient elastomer to prevent metal-to-metal contact on any sliding surface.
Product Information
Standard Information
-
Brand: Lovejoy
-
Part Number: 11401X7/8PULLEY
Technical Specifications
-
Pitch Diameter [Min]: 2.21 inches
-
Drive Type: Adjustable Center - Driver
-
Outside Diameter: 6 inches
-
Pitch Diameter [Max]: 5.8 inches
-
Finished Bore: 7/8 inches
-
Keyway Size: 3/16 x 3/32
-
Belt Size: 1422V
-
Torque Rating: 36 in lb
-
Overall Length: 3.56 inches
-
Weight: 5.5 lb
-
EAN or UPC: 685144207616
