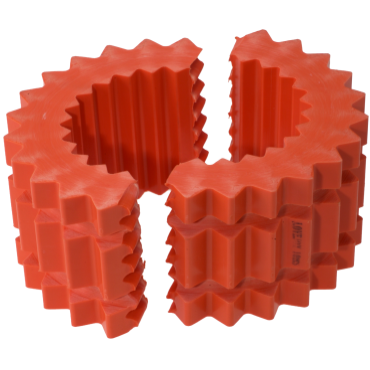

Lovejoy 10HSSLEEVE S-Flex Coupling Sleeve

Product Description

The Lovejoy 10HSSLEEVE is a S-Flex Coupling Sleeve designed for reliable performance. It features a flexible structure, ideal for connecting two shafts while minimizing vibration and shock. The installation process is straightforward, making it suitable for various mechanical power transmission applications.

• Flexible with external teeth
• Maintenance-free
• No lubrication required

Product Highlights

This sleeve is torsionally soft and allows for double engagement, ensuring a stable connection.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: 10HSSLEEVE

Technical Specifications

• Sleeve Type: HS
• Wind-Up Angle @ Nominal Torque: 7 degrees
• HP @ RPM: 324 hp @ 1800 rpm
• RPM [Max]: 3600 rpm
• Material: Hytrel
• Axial Misalignment: 0.125 inches
• Torque Rating [Max]: 11350 in lb
• Coupling Size: 10
• Length: 1.630 inches
• Outside Dia.: 7.06 inches
• Temperature Range [Min]: -65 degrees F
• Temperature Range [Max]: 250 degrees F
• Insert Style: Two Piece Split
• Weight: 3.0 lb
• EAN or UPC: 685144354556
• NSN Number: 3030-00-455-2220
