Lovejoy 10ESLEEVE 10E Sleeve | S-Flex Endurance Shear Type Coupling Inserts

Product Description

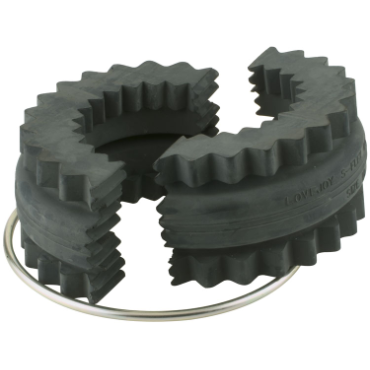

The Lovejoy 10ESLEEVE is an EPDM sleeve for S-Flex Endurance shear type couplings. This product lasts three times longer than previous designs. It is designed to fit industry-standard couplings. It is suitable for many applications and is available for quick shipping.

• EPDM material for durability
• Axial misalignment capability of 0.125 inches
• Interchangeable with standard coupling sizes

Product Highlights

High-performance sleeve for industrial coupling applications.

Product Information

Standard Information

• Brand: Lovejoy
• MPN: 10ESLEEVE
• Availability: Ready to Ship

Technical Specifications

• Material: EPDM
• Coupling Size: 10
• HP @ RPM: 82 hp @ 1800 rpm
• Length: 1.630 inches
• Outside Diameter: 7.0600 inches
• Weight: 3.7 pounds
• Max RPM: 3600 rpm
• Temperature Range: -30 °F to 375 °F
• Torque Rating: 2875.0 in lb
• Wind-Up Angle: 15 °
• Torsional Stiffness: 980 inch pounds/radian
• Insert Style: Two Piece Split w/ Ring
• Axial Misalignment: 0.125 inches
