Lovato RF380100 Motor Protection Relay 0.63-1A

Product Description

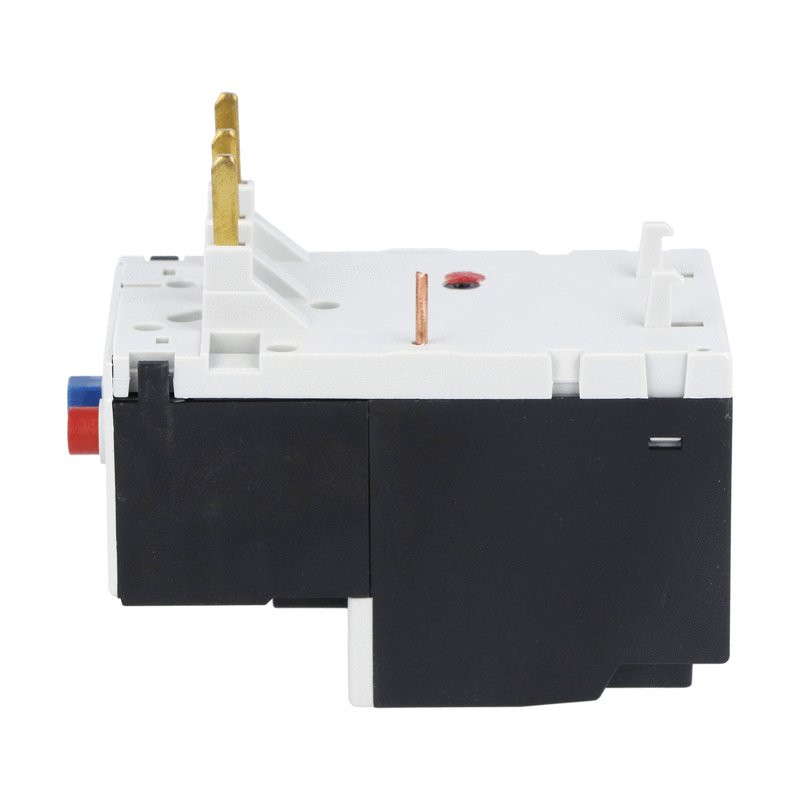

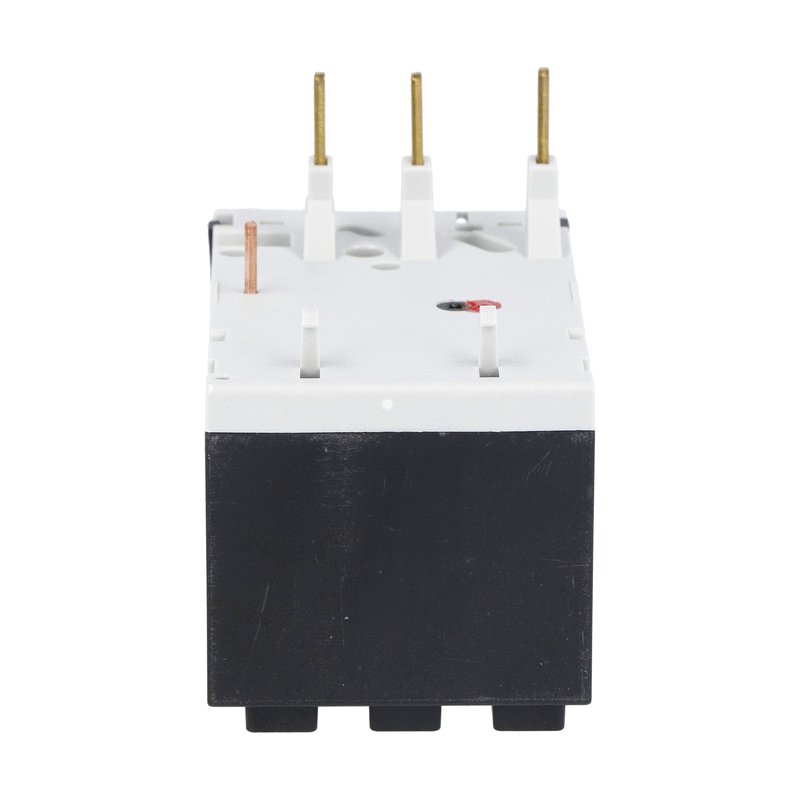

The LOVATO RF380100 is a motor protection relay with phase failure sensitivity, designed for three-phase systems. It features manual or automatic resetting and direct mounting on BF09 - BF38 contactors. Adjustable from 0.63 to 1 AMP, it provides complete motor protection when wired to the contactor coil.

• Motor protection relay
• Phase failure/single-phase sensitive
• Manual or automatic resetting

Product Highlights

Provides reliable motor protection with phase loss detection and easy installation.

Product Information

Standard Information

• Brand: LOVATO
• Manufacturer Part Number: RF380100

Technical Specifications

• Number of poles: 3
• Overvoltage category: III
• Pollution degree: 3
• Frontal IP degree: IP20
• Type of release: Thermal
• Protection fuse gG (IEC): 4 A
• Protection fuse aM (IEC): 2 A
• Protection fuse RK5 (UL): 3 A
• Phase failure detection: yes
• Reset mode: Manual or automatic
• Rated insulation voltage Ui IEC/EN: 690 V
• Rated impulse withstand voltage Uimp: 6 kV
• Rated operational voltage: 690 V
• Operational frequency min: 0 Hz
• Operational frequency max: 400 Hz
• Operational current min: 0.63 A
• Operational current max: 1 A
• Tripping class: 10A
• Test Button: Yes
• Trip indicator: yes
• Terminals type: screw and washer
• Terminals screw: M4
• Terminals width: 12.6 mm
• Terminals tool: Phillips 2
• Tightening torque for terminals min: 2 Nm
• Tightening torque for terminals max: 2.5 Nm
• Conductor section Flexible w/o lug max: 10 mm
• Conductor section Flexible c/w lug max: 6 mm
• AWG/kcmil max: 8
• Auxiliary contacts NO: 1
• Auxiliary contacts NC: 1
• Auxiliary Rated insulation voltage Ui IEC/EN: 690 V
• Auxiliary Rated impulse withstand voltage Uimp: 6 kV
• Auxiliary Rated operational voltage: 690 V
• Operating current AC15 24V: 3 A
• Operating current AC15 120V: 3 A
• Operating current AC15 240V: 1.5 A
• Operating current AC15 380V: 0.95 A
• Operating current AC15 480V: 0.75 A
• Operating current AC15 500V: 0.72 A
• Operating current AC15 600V: 0.6 A
• Operating current DC13 125V: 0.11 A
• Operating current DC13 600V: 0.22 A
