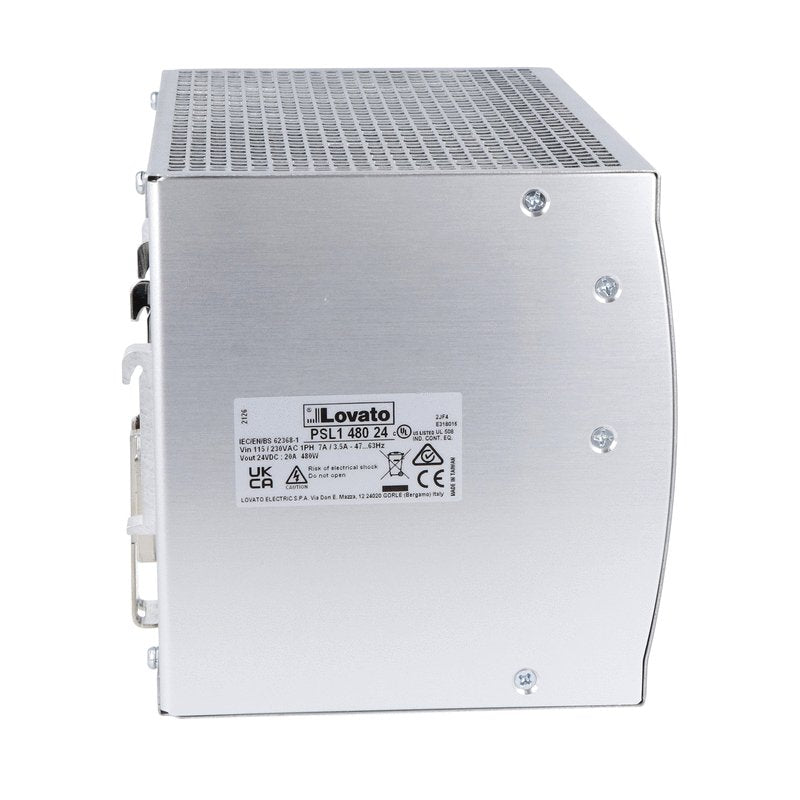

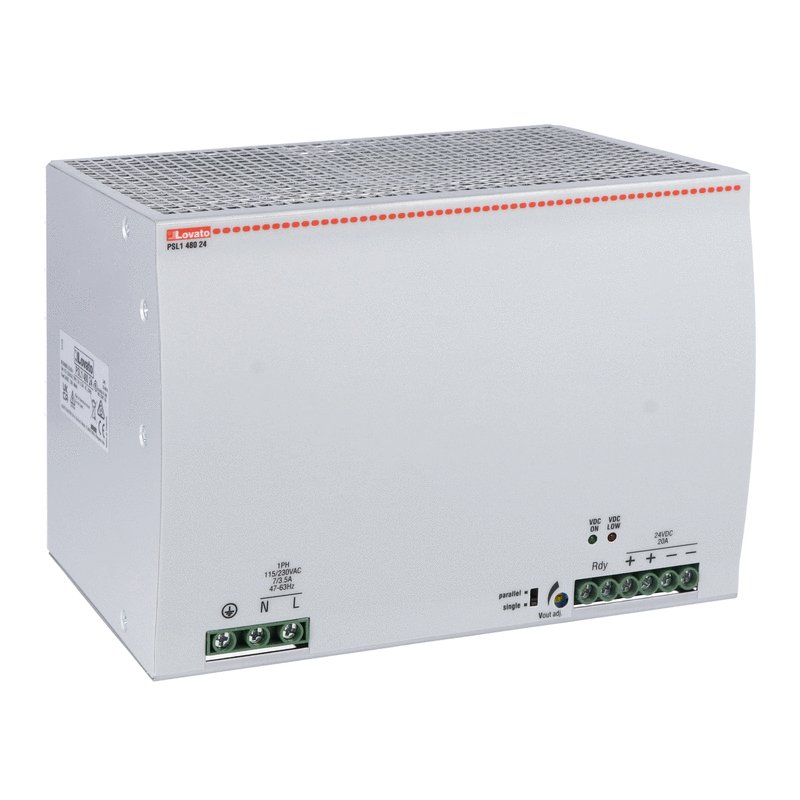

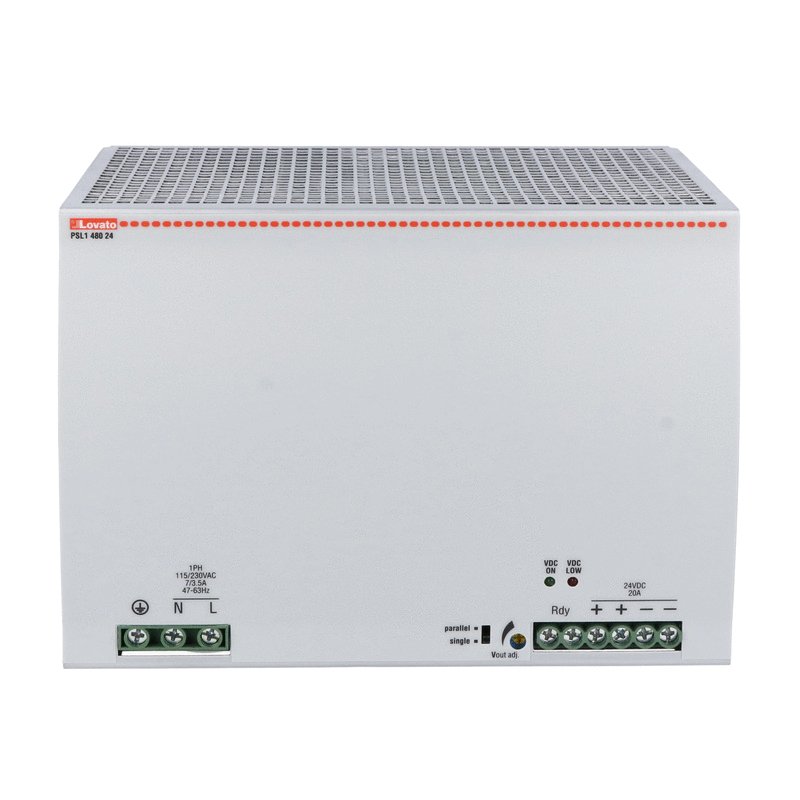

Lovato PSL148024 Switching Power Supply 24VDC 480W

Product Description

The LOVATO PSL148024 is a single-phase DIN rail switching power supply, delivering 24VDC at 20A, with a rated output of 480W. It features self-configurable input voltage from 115 to 230 VAC and includes overload and short-circuit protection. Designed for DIN rail mounting, this power supply is suitable for various industrial applications.

• Single-phase
• DIN rail mounting
• 24VDC

Product Highlights

Single-phase DIN rail mount power supply with 24VDC output.

Product Information

Standard Information

• Brand: LOVATO
• Manufacturer Part Number: PSL148024
• Country of Origin: ITALY

Technical Specifications

• Product designation: Switching power supplies
• Product type designation: PSL1
• Input type: Single-phase
• Rated supply voltage AC: Self-configurable 115 230 VAC
• Operating range AC min: 90 VAC
• Operating range AC Max: 264 VAC
• Operating range DC min: 120 VDC
• Operating range DC Max: 375 VDC
• Rated frequency: 50/60 Hz
• Operational frequency min: 47 Hz
• Operational frequency max: 63 Hz
• Current consumption Max: 7A (90VAC) / 3.5A (180VAC)
• PFC: 0.97
• Insulation voltage Input/Output AC: 3000 VAC
• Insulation voltage Input/Output DC: 4242 VAC
• Internal fuse (250VAC): T10A 250VAC
• Rated output voltage DC: 24 VDC
• Voltage trimming (potentiometer) DC min: 22.5 VDC
• Voltage trimming (potentiometer) DC Max: 28.5 VDC
• Rated output current: 20 A
• Rated output power: 480 W
• Temperature coefficient: 0.03 %/ C
• Line adjustment: 0.5 %
• Load adjustment: 1 %
• Efficency: 89 %
• Overload protection: 110 140%
• Short-circuit protection: Fold forward
• Ripple & noise: 100 mV
• Parallel connection: 3 Nr.
• LED indicator for power on: Yes
• LED indicator for low voltage: Yes
• Power Rdy (Ready - minimum limit): Yes
• Terminals type: Screw
• Operating temperature min: -40 C
• Operating temperature max: +71 C
• Storage temperature min: -40 C
• Storage temperature max: +85 C
• Derating: 2.5%/ C above 56 C
• Material: Metal
• IEC degree of protection: IP20

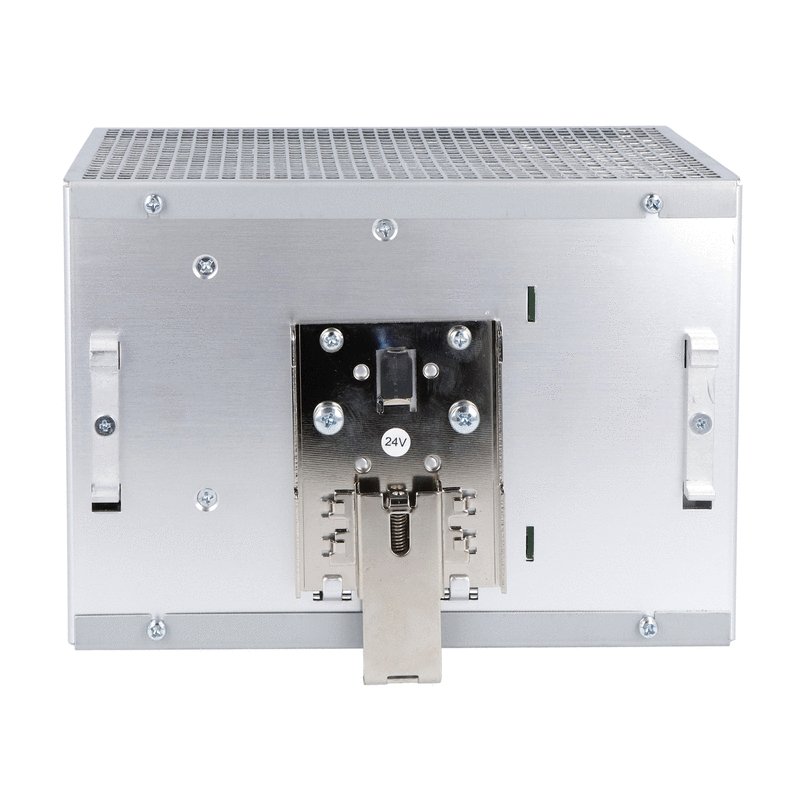

• Mounting: On 35mm DIN rail
• ETIM 8.0: EC002540 - DC-power supply
• Model: Lovato PSL 1 - 480 - 24 Single Phase 480
• Type: Power Supply
• MPN: PSL 1 - 480 - 24
• Brand: LOVATO
• Manufacturer Part Number: PSL148024
• Manufacturer: Lovato
• Product Series: PSL
• Family Series: Lovato Power Supplies, PSL Series
• Description: DIN 1Ph Power Supply 480W 100-240VAC 24VDC
• Power: 480 W
• Nominal Input Voltage: 120 VAC, 208 VAC
• AC Voltage: 115-230 VAC
• Input Frequency: 50 Hz, 60 Hz
• Phase: 1
• Nominal Output Voltage: 24 VDC
• Output VDC: 24 VDC
• Number of Outputs: 1
• Enclosed: Yes
• Output Voltage Adj.: Yes
• Overvoltage Protection: No
• Overload Protection: Yes
• Short Circuit Protection: Yes
• Power Factor Correction: No
• Parallel Operation: Yes
• Remote Sensing: No
• Remote On/Off Control: No
• Operating Temperature: -40-160 F
