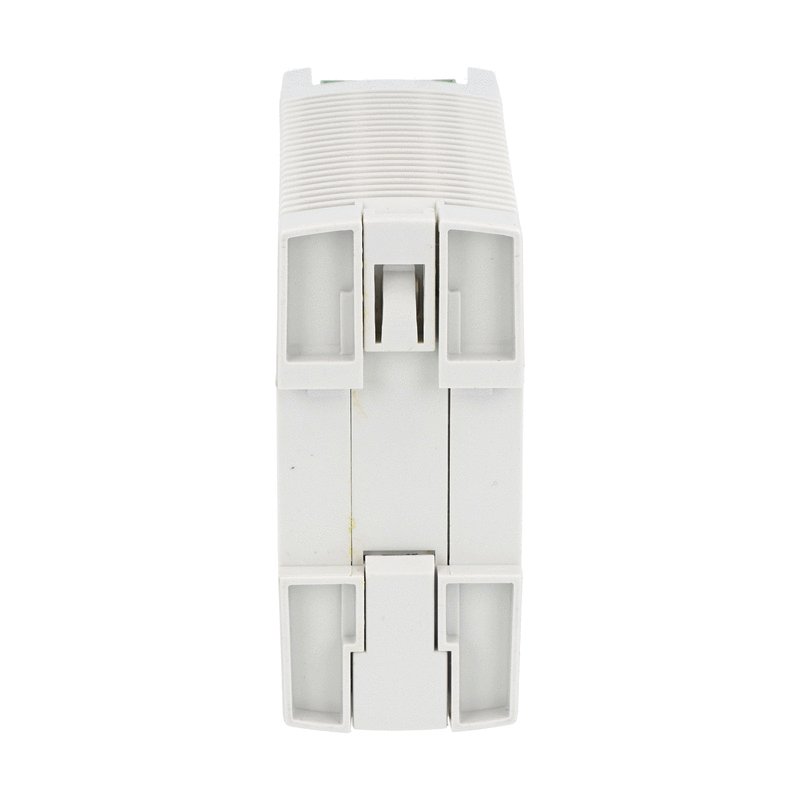

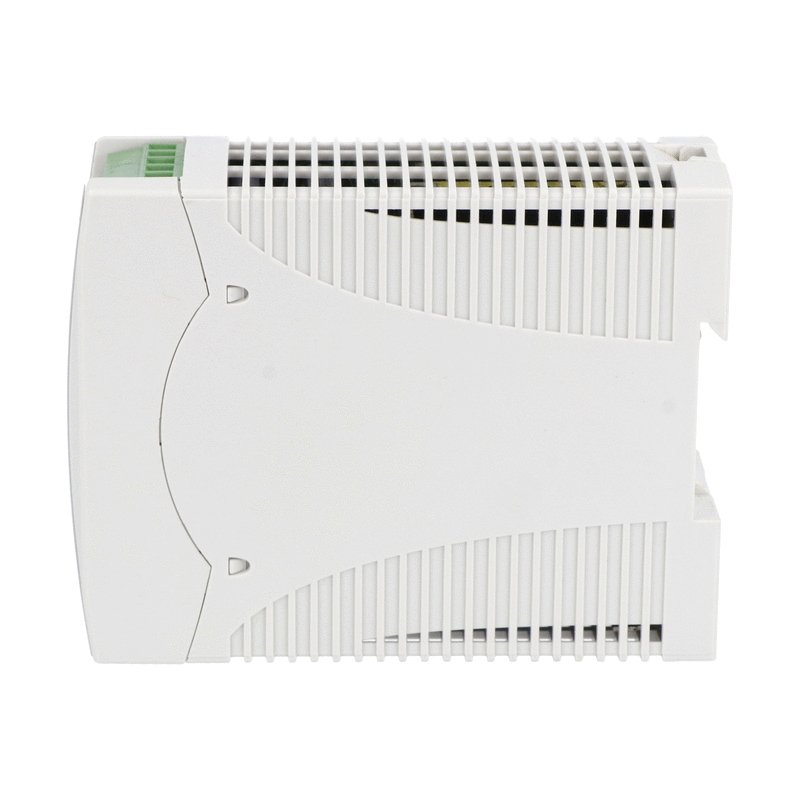

Lovato PSL106024 Din rail switching power supply 60W

Product Description

The LOVATO PSL106024 is a single-phase din rail switching power supply. It is designed to power electromechanical and electronic devices with DC control, such as contactors, time relays, sensors, PLCs, DC motors and SSRs. It is commonly used in automation systems and networks.

• Single-phase
• DIN rail mounting
• LED indicator for power on

Product Highlights

The LOVATO PSL106024 switching power supply provides a reliable 24VDC output at 2.5A, with a power rating of 60W.

Product Information

Standard Information

• Brand: LOVATO
• Manufacturer Part Number: PSL106024

Technical Specifications

• Product designation: Switching power supplies
• Product type designation: PSL1
• Input type: Single-phase
• Rated supply voltage AC: Multivoltage 100...240 VAC
• Operating range AC min: 85 VAC
• Operating range AC Max: 264 VAC
• Operating range DC min: 90 VDC
• Operating range DC Max: 375 VDC
• Rated frequency: 50/60 Hz
• Operational frequency min: 47 Hz
• Operational frequency max: 63 Hz
• Current consumption Max: 1500 mA
• Insulation voltage Input/Output AC: 3000 VAC
• Insulation voltage Input/Output DC: 4242 VAC
• Internal fuse (250VAC): T2A 250VAC
• Rated output voltage DC: 24 VDC
• Voltage trimming (potentiometer) DC min: 24 VDC
• Voltage trimming (potentiometer) DC Max: 28 VDC
• Rated output current: 2.5 A
• Rated output power: 60 W
• Temperature coefficient: 0.03 %/ 0C
• Line adjustment: 0.5 %
• Load adjustment: 0.5 %
• Efficency: 89 %
• Overload protection: 110 150%
• Short-circuit protection: Fold forward
• Ripple & noise: 50 mV
• Parallel connection: No
• LED indicator for power on: Yes
• LED indicator for low voltage: No
• Power Rdy (Ready - minimum limit): Yes
• Terminals type: Screw
• Operating temperature min: -40 0C
• Operating temperature max: +71 0C
• Storage temperature min: -40 0C
• Storage temperature max: +85 0C
• Derating: 2.5%/ 0C above 60 0C
• Material: Plastic
• IEC degree of protection: IP20
• Mounting: On 35mm DIN rail
• Brand: Lovato Electric
• Component Type: Switching Power Supply
• Lovato Product Series: Lovato PSL1 Switching Power Supply
• Number Of Phases: 1 Phase
• Operating Current: 2.5A
• Output Voltage: 24V DC
• Power: 60 W
• Manufacturer Part Number: PSL106024
• Series: PSL Series
• Supply Voltage: 100-240 VAC
• Nominal Voltage Rating (AC): 240 V
• Manufacturer: Lovato
• Product Series: PSL
• Family Series: Lovato Power Supplies, PSL Series
• Description: Power Supply, 24VDC, 2.5A, 1Ph, 60W, 100-240VAC Input, DIN Mount, Switcher
• Nominal Input Voltage: 120 VAC, 208 VAC, 240 VAC
• AC Voltage: 100-240 VAC
• Input Frequency: 50 Hz, 60 Hz
• Phase: 1
• Nominal Output Voltage: 24 VDC
• Output VDC: 24 VDC
• Number of Outputs: 1
• Enclosed: Yes
• Output Voltage Adj.: Yes
• Overvoltage Protection: No
• Overload Protection: Yes
• Short Circuit Protection: Yes
• Power Factor Correction: No
• Parallel Operation: No
• Remote Sensing: No
• Remote On/Off Control: No
• Operating Temperature: -40-160 0F
• Approvals: cULus, UL508
• Voltage: 24VDC
• Wattage: 60W
