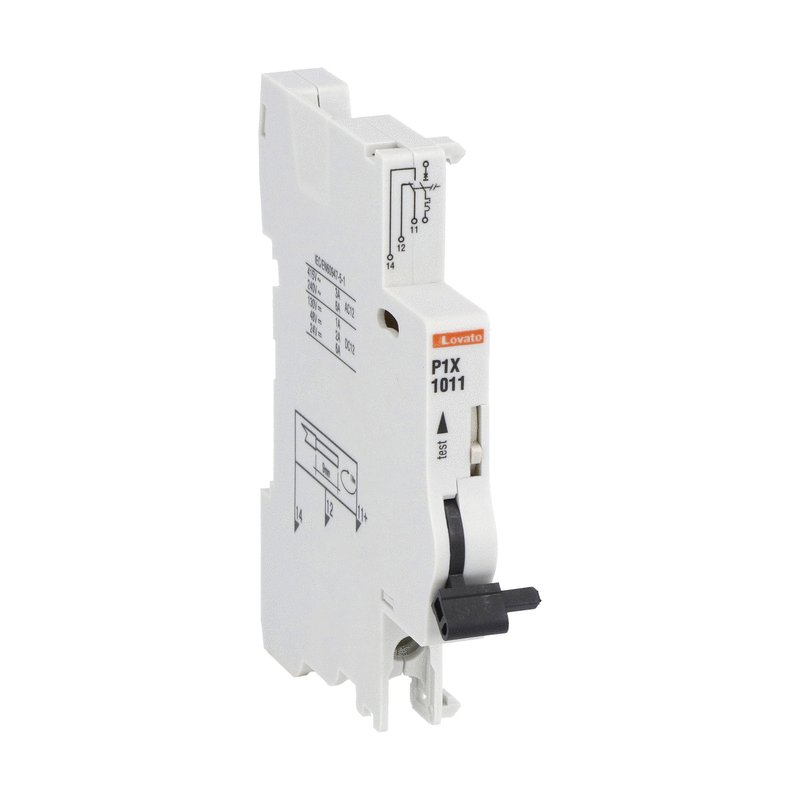

Lovato P1X1011 Auxiliary Contact Side Mount 6 A 400 VAC (0.5 DIN module)

Product Description

Lovato P1X1011 is a side-mount auxiliary contact add-on block that provides a single changeover contact for P1 series devices. It is rated for 6 A at 400 VAC and supports low-level signaling at 24 V, 10 mA. The clip-on screw-connection accessory accepts conductors up to 1x2.5 mm² or 2x1.5 mm² with 1 Nm terminal torque and operates from -40 °C to +70 °C. Typical uses include control panels, signaling, and interlocking functions.

• Single changeover (1 C/O) contact, SPDT configuration, rated 6 A at 400 VAC.
• Side-mount clip-on design with screw terminals; accepts 1x2.5 mm² or 2x1.5 mm²; terminal torque 1 Nm; PH2 tool.
• Operating temperature -40 °C to +70 °C; low-level contact operation 24 V, 10 mA; certified to IEC/EN/BS 60947-5-1 and UL recognized (E471594).

Product Highlights

Side-mount auxiliary contact (1 C/O) for P1 series, 6 A 400 VAC, 0.5 DIN module, screw connection.

Product Information

Standard Information

• Brand: LOVATO
• Manufacturer Part Number: P1X1011
• Country of Origin: United Kingdom

Technical Specifications

• Brand: Lovato
• Manufacturer Part Number: P1X1011
• Product Type: Auxiliary contact (add-on block)
• Contact Configuration: 1 changeover (1 C/O) / SPDT
• Number of Poles: 1
• Number of DIN Modules: 0.5
• Mounting Type: Side mount (clip-on)
• Terminal Type: Screw
• Terminals Conductor Section: 1x 2.5 mm² or 2x 1.5 mm²
• Terminal Tightening Torque: 1 Nm
• Terminal Tool: PH2
• Rated Operational Voltage: 400 VAC
• Rated Current: 6 A
• Rated Impulse Withstand Voltage: 4 kV
• Low-level Conductivity: 24 V, 10 mA
• Operating Temperature Range: -40 to +70 °C
• Storage Temperature Range: -40 to +80 °C
• Compliance / Standards: IEC/EN/BS 60947-5-1; UL recognized (E471594)
• Compatibility: Accessories for P1MB..., P1RD..., P1RE... series
• Mechanical Durability: 20,000 cycles
• Weight (manufacturer spec): 40 g
• EAN: 8013975204900
• HS Code / Import Code: 85365080 / 8538909999
