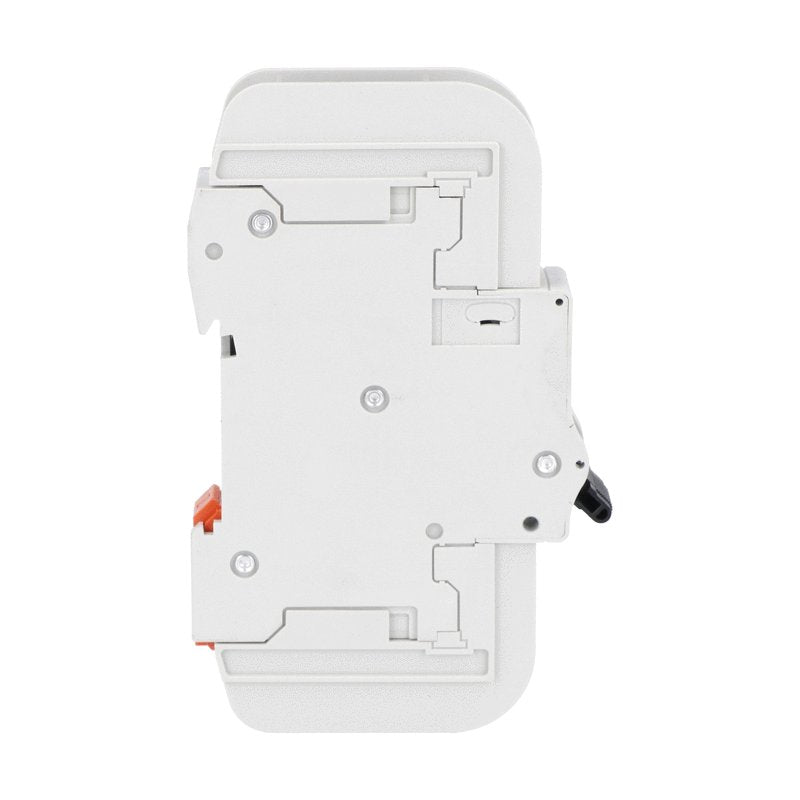

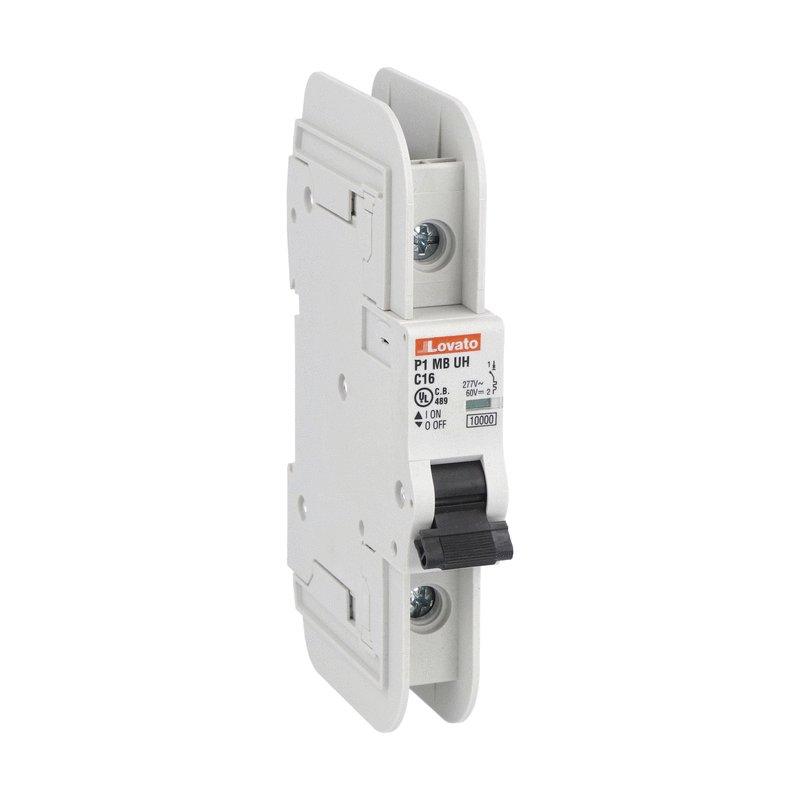

Lovato P1MBUH1PC30 Miniature Circuit Breaker 30A

Product Description

The LOVATO P1MBUH1PC30 is a miniature circuit breaker (MCB), 1P, 1 module, compliant with IEC / UL489 standards. It has a rated insulation voltage Ui IEC/EN of 440V and a rated impulse withstand voltage Uimp of 4kV. Rated for operational voltages of AC (IEC) 230/400VAC, AC (UL) 277V, and DC 60VDC, with a rated current (In) of 30A and a tripping curve C. The short circuit rating (IEC) is 10kA.

• Miniature circuit breaker (MCB)
• Rated current (In): 30A
• Short circuit rating (IEC): 10kA

Product Highlights

The LOVATO P1MBUH1PC30 is a reliable miniature circuit breaker suitable for various applications, ensuring circuit protection with its robust design and compliance with international standards.

Product Information

Standard Information

• Brand: LOVATO
• Manufacturer Part Number: P1MBUH1PC30
• Country of Origin: China

Technical Specifications

• Product designation: Miniature circuit breaker (MCB)
• Product type designation: P1 MB
• Number of poles: 1P
• Number of DIN modules: 1
• Compliance: IEC / UL489
• Rated insulation voltage Ui IEC/EN: 440 V
• Rated impulse withstand voltage Uimp: 4 kV
• Rated operational voltage AC (IEC): 230/400 VAC
• Rated operational voltage AC (UL): 277 V
• Rated operational voltage DC: 60 VDC
• Rated frequency: 50/60 Hz
• Rated current (In): 30 A
• Tripping curve: C
• Short circuit rating (IEC): 10 kA
• Short circuit rating (UL): 10 kA
• Electrical life: 10000 cycles
• Power dissipation per pole max: 2.46 W
• Operating temperature min: -40 °C
• Operating temperature max: +70 °C
• Storage temperature min: -40 °C
• Storage temperature max: +80 °C
• Max altitude: 2000 m
• Operating position normal: Vertical plan
• Fixing: 35mm DIN rail
• Tightening torque for terminals min: 1.8 Nm
• Tightening torque for terminals max: 2 Nm
• Terminals tool: Pz 2
• Conductor section IEC min: 1 mm²
• Conductor section IEC max: 35 mm²
• AWG/Kcmil min: 14
• AWG/Kcmil max: 6 kcmil
• Mechanical life: 20000 cycles
• Frontal IP degree: IP20
• Pollution degree: 2
• ETIM 8.0: EC000042 - Miniature circuit breaker (MCB)
• UNSPSC Code: 39120000
• Brand: LOVATO Electric
• Characteristic: C Curve
• Manufacturer Part Number: P1MBUH1PC30
• Number of Poles: 1 Pole
• Series: P1MB Series
• Unit of Measure: EA
• MPN: P1MBUH1PC30
• UPC: Does Not Apply
• Condition: New
• Manufacturer: Lovato
• Family Series: Lovato Circuit Breakers
• Description: Circuit Breaker 1P C30 277V 10Ka Ul489
• Poles: 1
• Current Rating: 30 A
• Max Voltage: 277 VAC
• Trip Curve: C
• Trip Unit: Fixed Thermal / Fixed Magnetic
• Mounting: DIN Rail
• Neutral Pole: No
• Terminal Type: Screw
• Auxiliary Switch: Optional
• Shunt Trip: Optional
• Undervoltage Release: Optional
• Alarm Switch: Optional
• UL Standard: 489
• Approvals: cULus
• Net Weight: 0.2932 lbs
• Gross Weight: 0.2932 lbs
