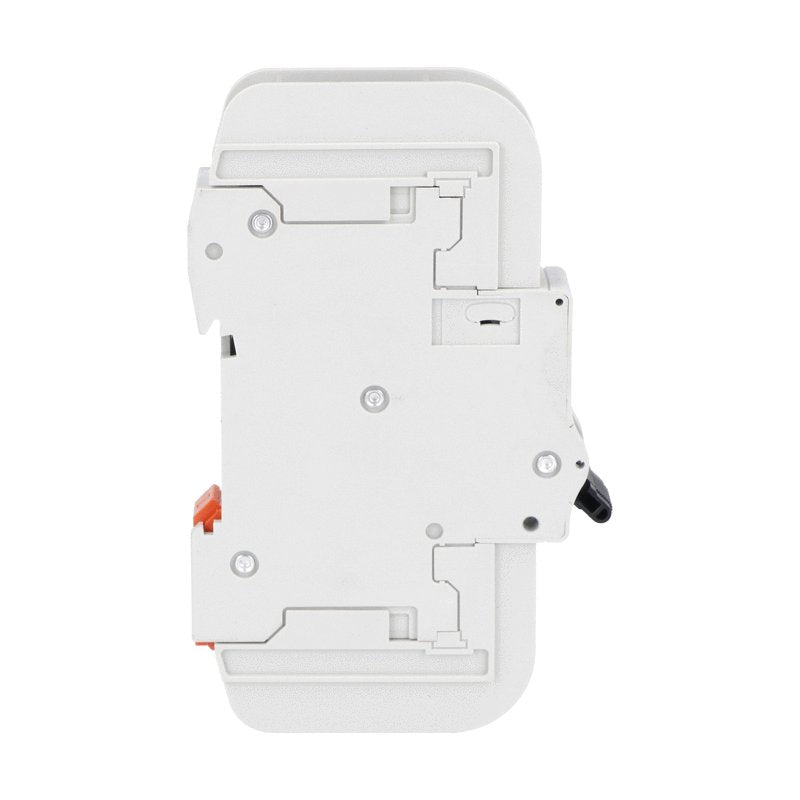

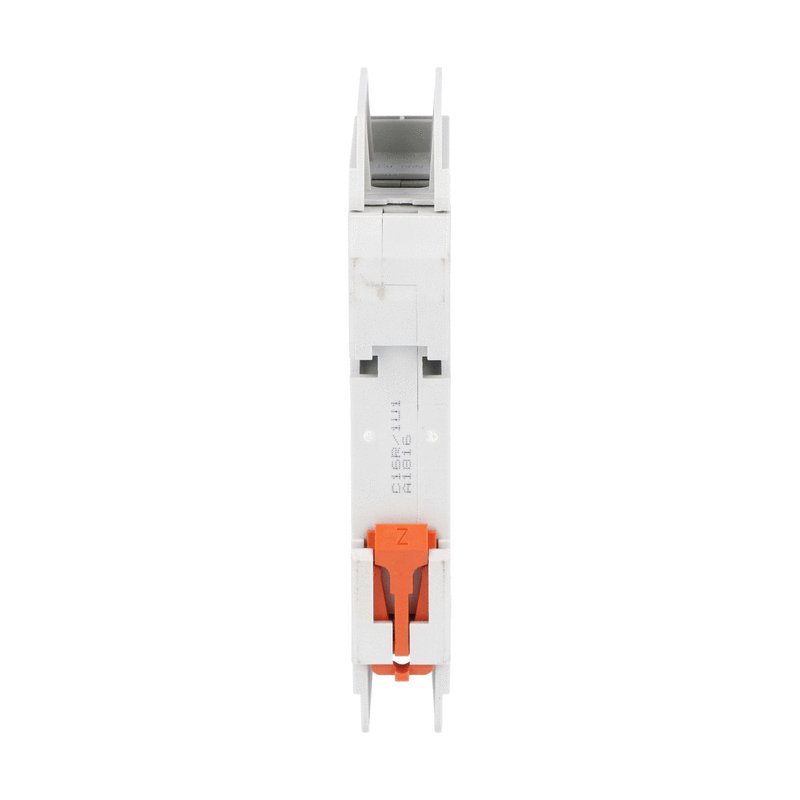

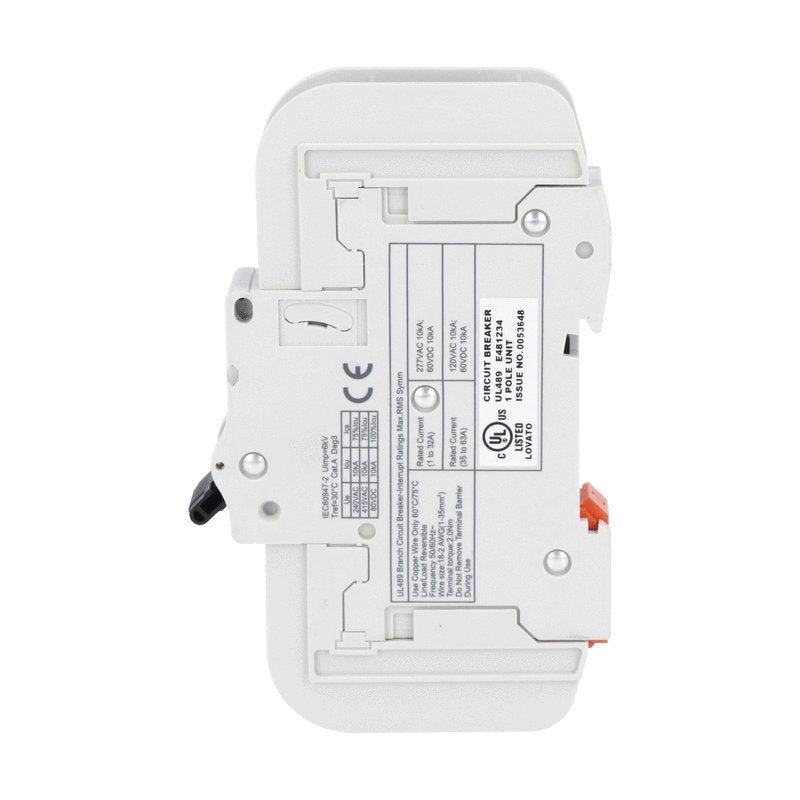

Lovato P1MBUH1PC15 Miniature Circuit Breaker 15A

Product Description

The LOVATO P1MBUH1PC15 is a miniature circuit breaker (MCB), designed as a 1P, 1 module device compliant with IEC / UL489 standards. Featuring a C tripping curve and a rated current of 15A, it provides short circuit protection up to 10kA (IEC and UL). Suitable for DIN rail mounting in vertical position.

• Compliance with IEC / UL489 standards
• Rated current (In) 15A
• Short circuit rating of 10kA (IEC and UL)

Product Highlights

Miniature circuit breaker (MCB) with 15A rated current and 10kA short circuit rating, ideal for circuit protection.

Product Information

Standard Information

• Brand: LOVATO
• Manufacturer Part Number: P1MBUH1PC15

Technical Specifications

• Product designation: Miniature circuit breaker (MCB)
• Product type designation: P1 MB
• Number of poles: 1P
• Number of DIN modules: 1
• Compliance: IEC / UL489
• Rated insulation voltage Ui IEC/EN: 440 V
• Rated impulse withstand voltage Uimp: 4 kV
• Rated operational voltage AC (IEC): 230/400 VAC
• Rated operational voltage AC (UL): 277 V
• Rated operational voltage DC: 60 VDC
• Rated frequency: 50/60 Hz
• Rated current (In): 15 A
• Tripping curve: C
• Short circuit rating (IEC): 10 kA
• Short circuit rating (UL): 10 kA
• Electrical life: 10000 cycles
• Power dissipation per pole max: 1.69 W
• Operating temperature min: -40 °C
• Operating temperature max: +70 °C
• Storage temperature min: -40 °C
• Storage temperature max: +80 °C
• Max altitude: 2000 m
• Operating position: Vertical plan
• Fixing: 35mm DIN rail
• Tightening torque for terminals min: 1.8 Nm
• Tightening torque for terminals max: 2 Nm
• Terminals tool: Pz 2
• Conductor section IEC min: 1 mm²
• Conductor section IEC max: 35 mm²
• AWG/Kcmil min: 14
• AWG/Kcmil max: 6 kcmil
• Mechanical life: 20000 cycles
• Frontal IP degree: IP20
• Pollution degree: 2
• ETIM 8.0: EC000042 - Miniature circuit breaker (MCB)
• Manufacturer Part Number: P1MBUH1PC15
• Manufacturer: Lovato
• Family Series: Lovato Circuit Breakers
• Description: Circuit Breaker 1P C15 277V 10Ka Ul489
• Poles: 1
• Max Voltage: 277 VAC
• Trip Unit: Fixed Thermal / Fixed Magnetic
• Mounting: DIN Rail
• Neutral Pole: No
• Terminal Type: Screw
• Auxiliary Switch: Optional
• Shunt Trip: Optional
• Undervoltage Release: Optional
• Alarm Switch: Optional
• UL Standard: 489
• Approvals: cULus
