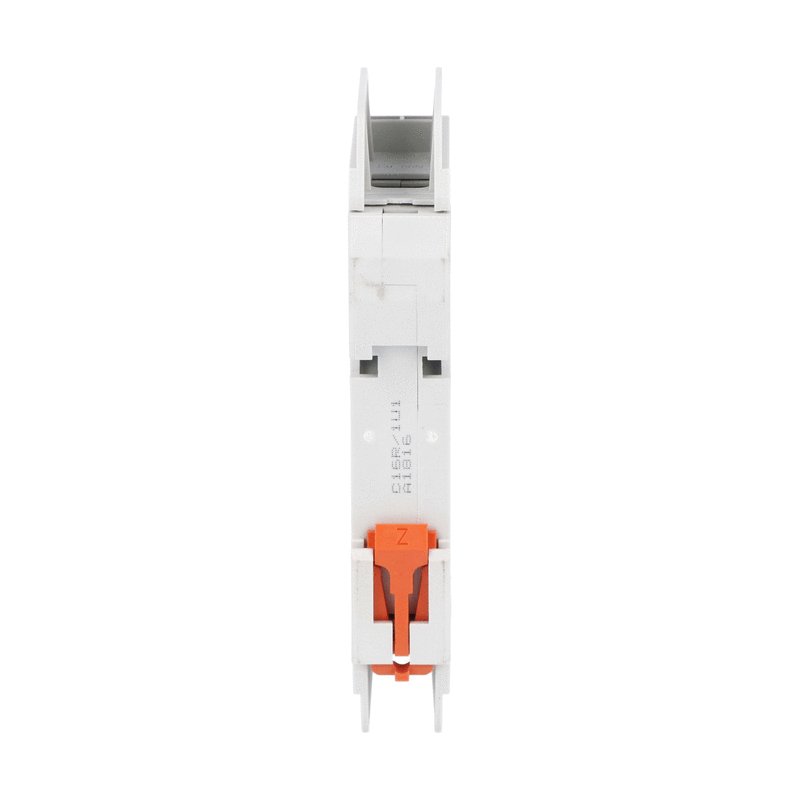

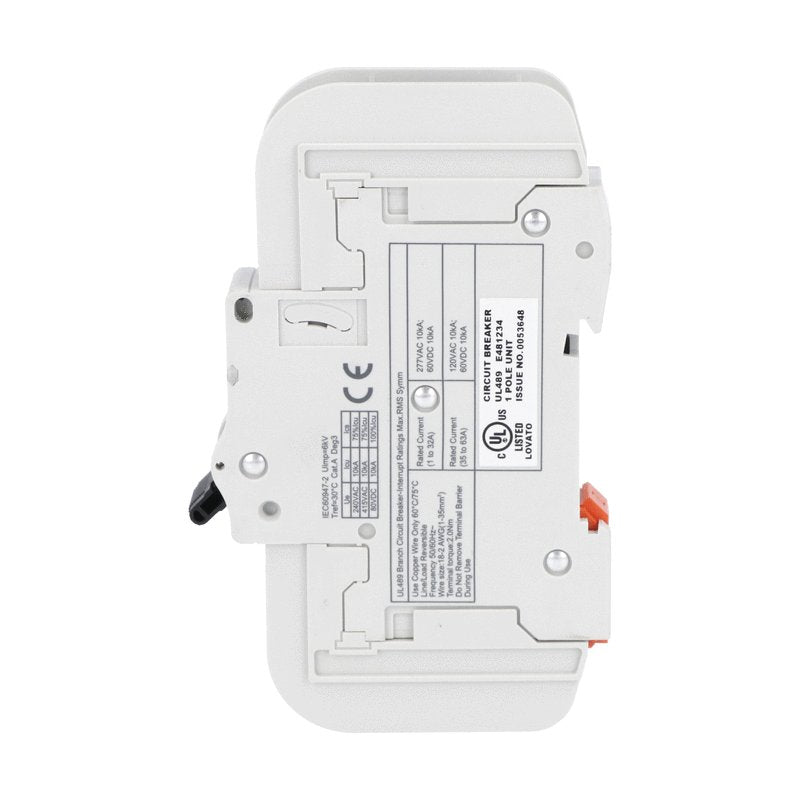

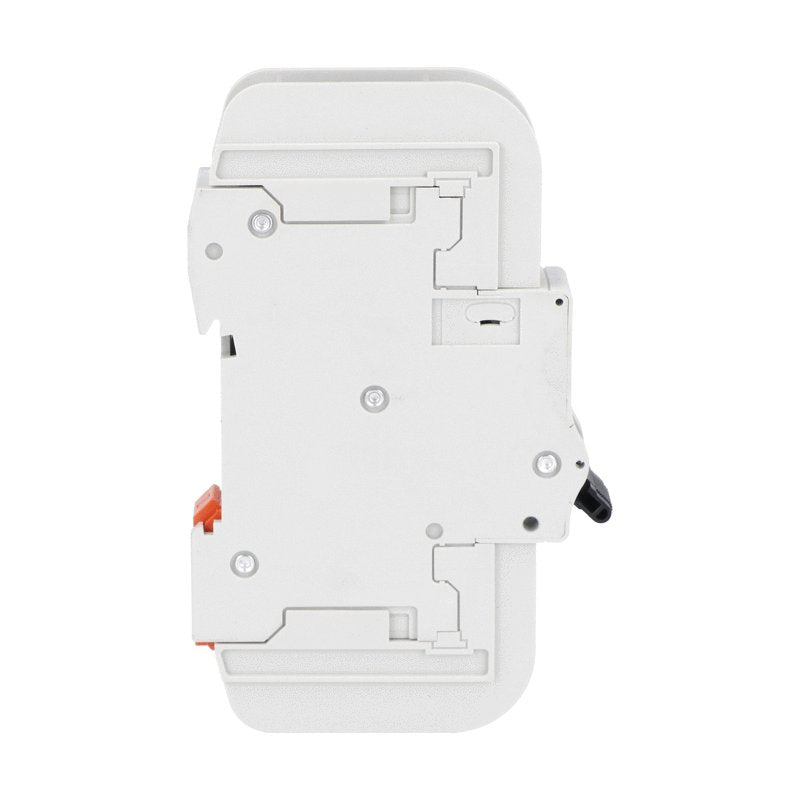

Lovato P1MBUH1PC05 Miniature Circuit Breaker 5A

Product Description

The LOVATO P1MBUH1PC05 is a miniature circuit breaker (MCB), 1P, 1 module, with IEC / UL489 compliance. It has a rated insulation voltage Ui IEC/EN 440V and a rated impulse withstand voltage Uimp 4kV. Rated for operational voltages of AC (IEC) 230/400VAC, AC (UL) 277V, and DC 60VDC, with a rated frequency of 50/60Hz and a rated current (In) of 5A.

• 1P
• 10kA
• 1 module

Product Highlights

Miniature circuit breaker with a tripping curve C and short circuit rating (IEC/UL) of 10kA.

Product Information

Standard Information

• Brand: LOVATO
• Manufacturer Part Number: P1MBUH1PC05

Technical Specifications

• Product designation: Miniature circuit breaker (MCB)
• Product type designation: P1 MB
• Number of poles: 1P
• Number of DIN modules: 1
• Compliance: IEC / UL489
• Rated insulation voltage Ui IEC/EN: 440 V
• Rated impulse withstand voltage Uimp: 4 kV
• Rated operational voltage AC (IEC): 230/400 VAC
• Rated operational voltage AC (UL): 277 V
• Rated operational voltage DC: 60 VDC
• Rated frequency: 50/60 Hz
• Rated current (In): 5 A
• Tripping curve: C
• Short circuit rating (IEC): 10 kA
• Short circuit rating (UL): 10 kA
• Electrical life: 10000 cycles
• Power dissipation per pole max: 1.04 W
• Operating temperature min: -40 00b0C
• Operating temperature max: +70 00b0C
• Storage temperature min: -40 00b0C
• Storage temperature max: +80 00b0C
• Max altitude: 2000 m
• Operating position: Vertical plan
• Fixing: 35mm DIN rail
• Tightening torque for terminals min: 1.8 Nm
• Tightening torque for terminals max: 2 Nm
• Terminals tool: Pz 2
• Conductor section IEC min: 1 mm 00b2
• Conductor section IEC max: 35 mm 00b2
• AWG/Kcmil min: 14
• AWG/Kcmil max: 6 kcmil
• Mechanical life: 20000 cycles
• Frontal IP degree: IP20
• Pollution degree: 2
• ETIM 8.0: EC000042 - Miniature circuit breaker (MCB)
• UNSPSC Code: 39120000
• Brand: LOVATO Electric
• Characteristic: C Curve
• Manufacturer Part Number: P1MBUH1PC05
• Number of Poles: 1 Pole
• Series: P1MB Series
• Rated current In [A]: 5A
• Rated voltage: 277V AC
• Mounting: for DIN rail mounting
• Characteristics: C
• Short circuit breaking capacity: 10kA
• IP rating: IP20
• Cross section of connecting wires: 1...35mm2
• Conform to the norm: UL 489
• Trade name: MCB
• Operating temperature: -40...70 00b0C
