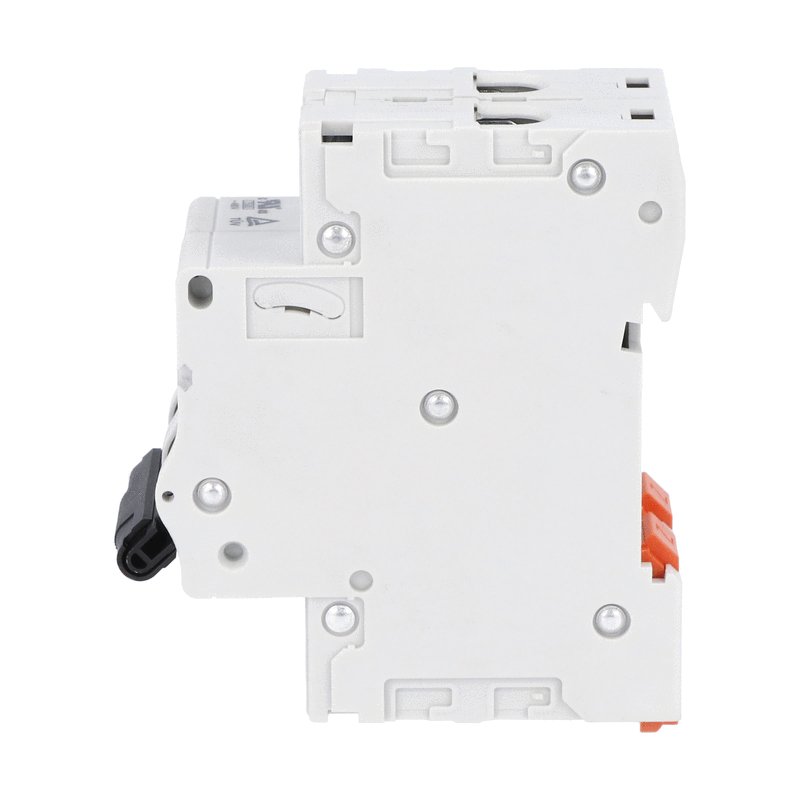

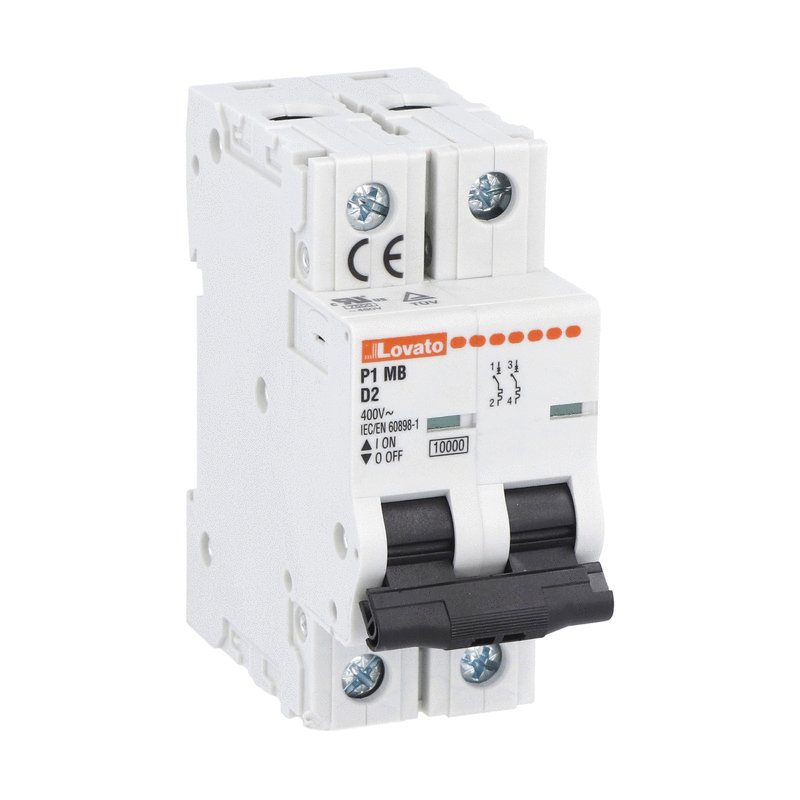

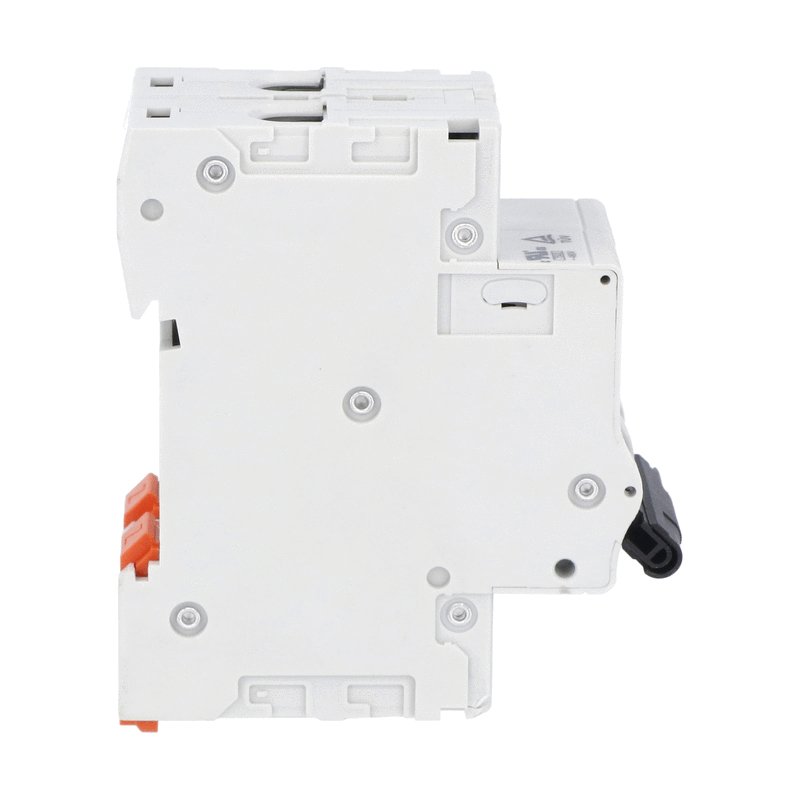

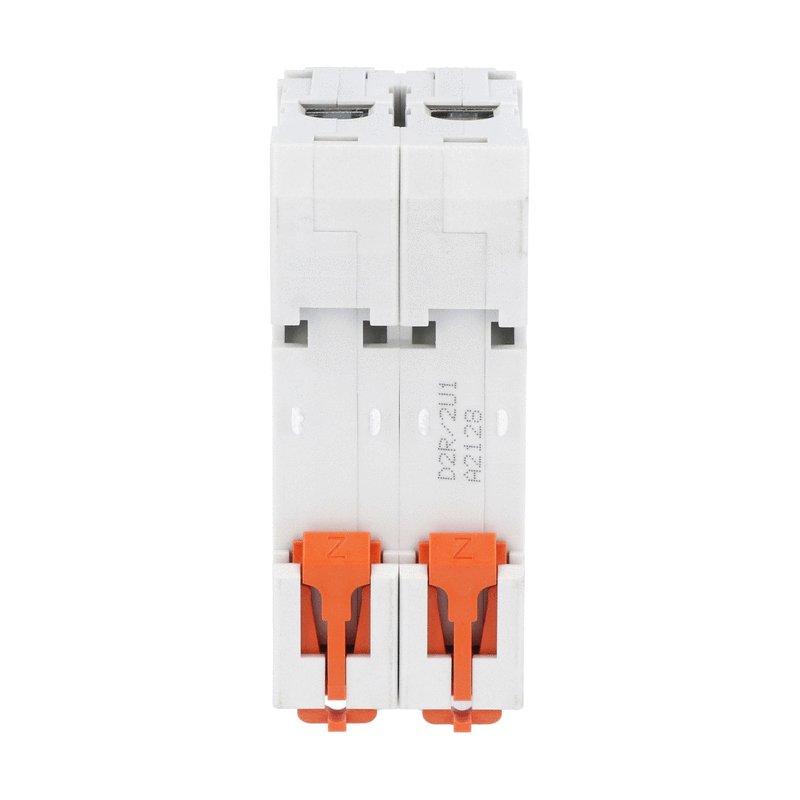

Lovato P1MB2PD03 Miniature Circuit Breaker 3A

Product Description

The LOVATO P1MB2PD03 is a 2-pole miniature circuit breaker (MCB) with a 3A rated current and D tripping curve. Compliant with IEC / UL1077 standards, this MCB is designed for operational voltages of 230/400VAC and 125VDC. It features a short circuit rating of 10kA and a limiting class of 3.

• 2P - 10kA
• Characteristic D
• Rated current (In) 3A

Product Highlights

Miniature circuit breaker with 3A rated current and D tripping curve. Suitable for various applications requiring circuit protection.

Product Information

Standard Information

• Brand: LOVATO
• Manufacturer Part Number: P1MB2PD03
• Country of Origin: ITALY

Technical Specifications

• Product designation: Miniature circuit breaker (MCB)
• Product type designation: P1 MB
• Number of poles: 2P
• Number of DIN modules: 2
• Compliance: IEC / UL1077
• Rated insulation voltage Ui IEC/EN: 440 V
• Rated impulse withstand voltage Uimp: 4 kV
• Rated operational voltage AC (IEC): 230/400 VAC
• Rated operational voltage DC: 125 VDC
• Rated frequency: 50/60 Hz
• Rated current (In): 3 A
• Tripping curve: D
• Short circuit rating (IEC): 10 kA
• Limiting class: 3
• Electrical life: 10000 cycles
• Power dissipation per pole max: 0.96 W
• Operating temperature min: -40 °C
• Operating temperature max: +70 °C
• Storage temperature min: -40 °C
• Storage temperature max: +80 °C
• Max altitude: 2000 m
• Operating position: Vertical plan
• Fixing: 35mm DIN rail
• Tightening torque for terminals min: 1.8 Nm
• Tightening torque for terminals max: 2 Nm
• Terminals tool: Pz 2
• Conductor section IEC min: 1 mm²
• Conductor section IEC max: 35 mm²
• AWG/Kcmil min: 14
• AWG/Kcmil max: 6 kcmil
• Mechanical life: 20000 cycles
• Frontal IP degree: IP20
• Pollution degree: 2
• Grid distance as per Annex H.1 of IEC/EN60898-1 standard: 60 mm
• ETIM 8.0: EC000042 - Miniature circuit breaker (MCB)
• Manufacturer Part Number: P1MB2PD03
• Manufacturer: Lovato
• Family Series: Lovato Circuit Breakers
• Description: Miniature Circuit Breaker, Ul 1077, 2 Pole, D Curve, 3A
• Poles: 2
• Current Rating: 3 A
• Max Voltage: 400 VAC, 80 VDC
• Trip Curve: D
• Trip Unit: Fixed Thermal / Fixed Magnetic
• Mounting: DIN Rail
• Neutral Pole: No
• Terminal Type: Screw
• Auxiliary Switch: Optional
• Shunt Trip: Optional
• Undervoltage Release: Optional
• Alarm Switch: Optional
• UL Standard: 1077
• Approvals: CE, cURus, TUV
• Primary brand: Lovato
• Order code / Manufacturer SKU: P1MB2PD03
• Manufacturer product status: Commercialized
• EAN code: 8013975237656
• Manufacturer description: Miniature Circuit Breaker UL 1077 2 Pole D curve 3A
