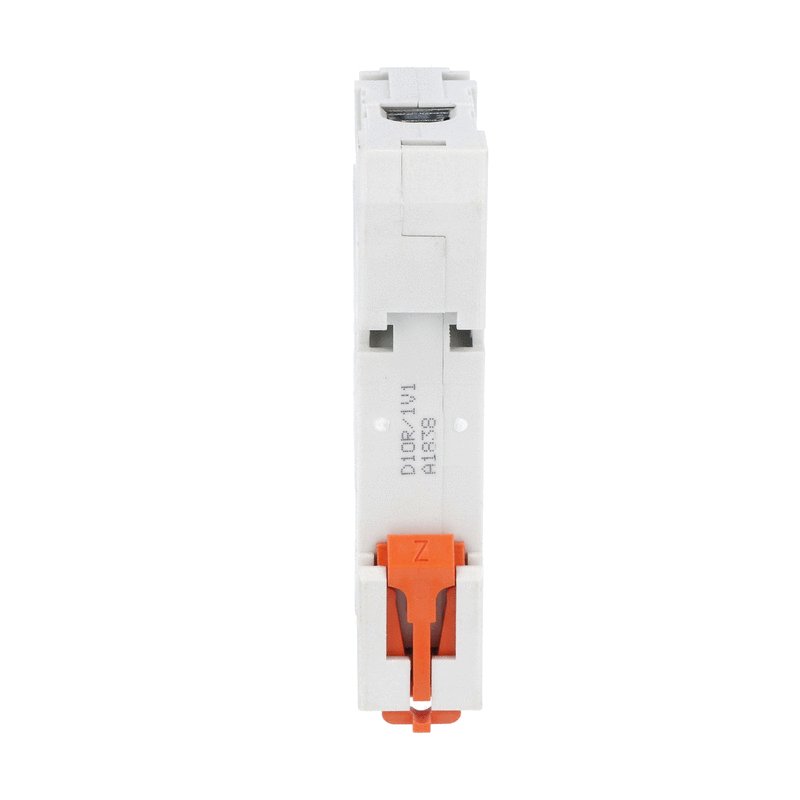

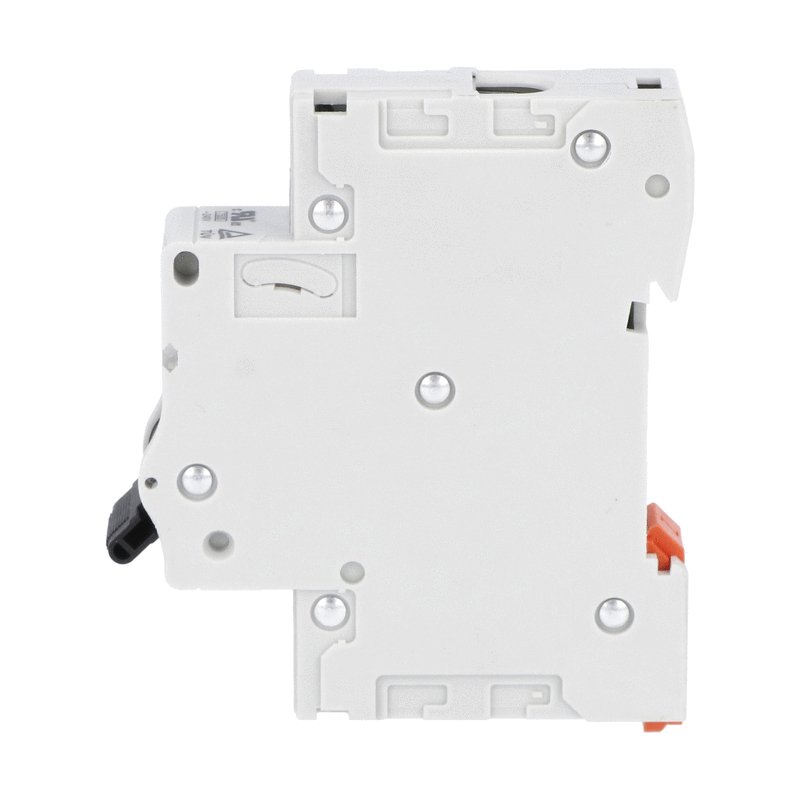

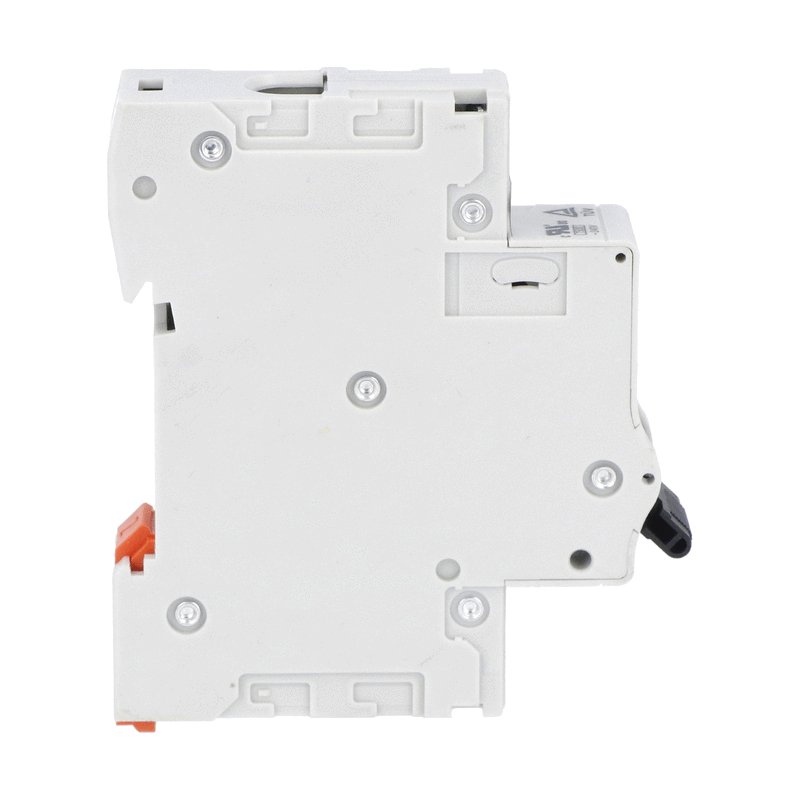

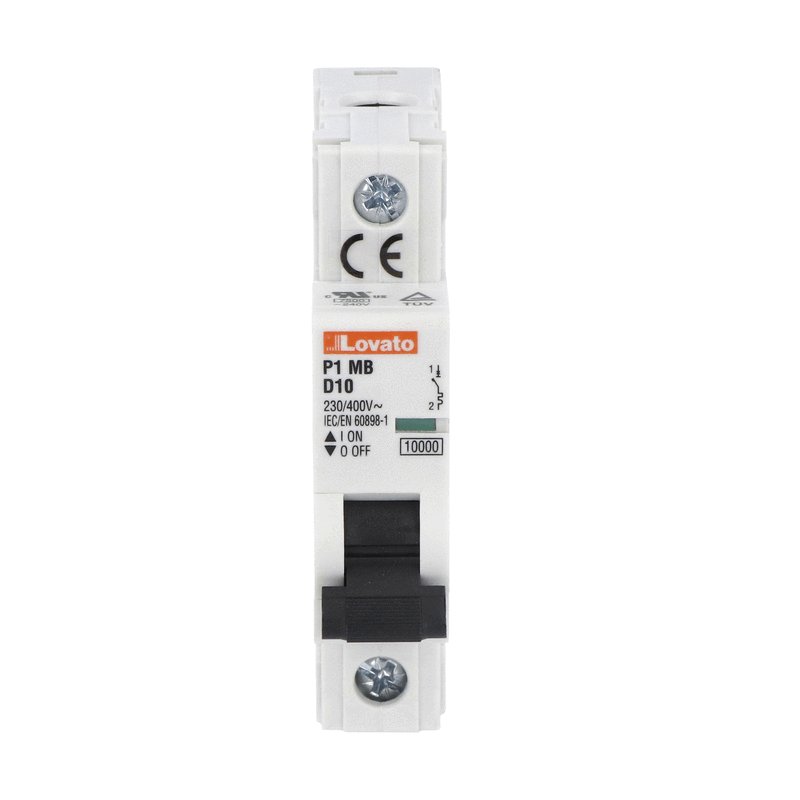

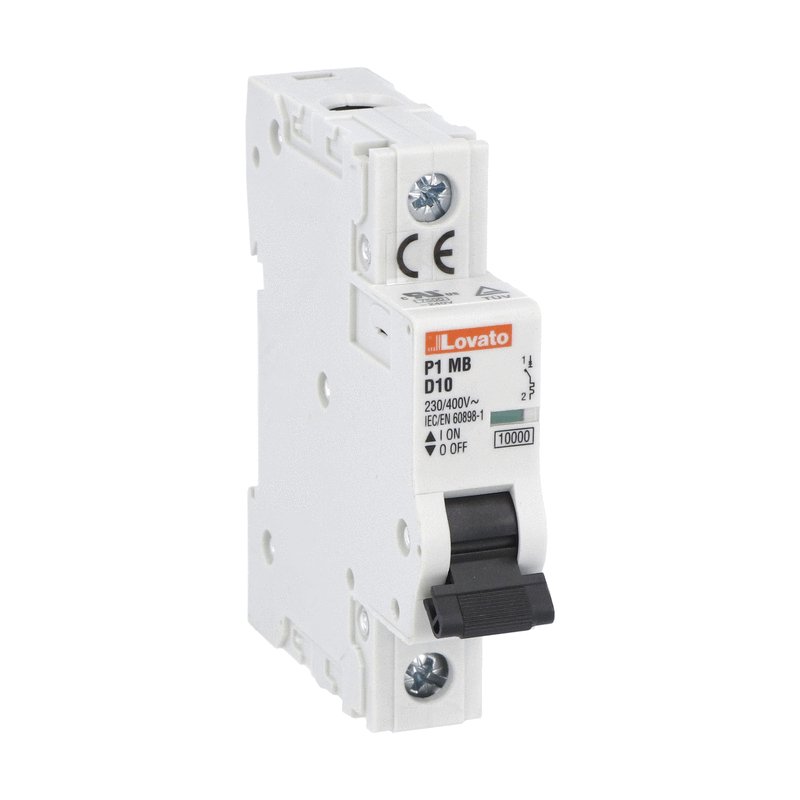

Lovato P1MB1PD02 Miniature Circuit Breaker 1P 2A

Product Description

The LOVATO P1MB1PD02 is a miniature circuit breaker (MCB) 1P - 10kA, with 1 module and characteristic D, 2A. This MCB is designed for circuit protection. It is compliant with IEC / UL1077 standards.

• Miniature circuit breaker
• 1P, 10kA, 1 module
• Characteristic D, 2A, IEC / UL1077 Compliance

Product Highlights

Miniature circuit breaker designed for circuit protection, compliant with IEC / UL1077 standards.

Product Information

Standard Information

• Brand: LOVATO
• Manufacturer Part Number: P1MB1PD02
• Country of Origin: ITALY

Technical Specifications

• Product designation: Miniature circuit breaker (MCB)
• Product type designation: P1 MB
• Number of poles: 1P
• Number of DIN modules: 1
• Compliance: IEC / UL1077
• Rated insulation voltage Ui IEC/EN: 440 V
• Rated impulse withstand voltage Uimp: 4 kV
• Rated operational voltage AC (IEC): 230 VAC
• Rated operational voltage DC: 80 VDC
• Rated frequency: 50/60 Hz
• Rated current (In): 2 A
• Tripping curve: D
• Short circuit rating (IEC): 10 kA
• Limiting class: 3
• Electrical life: 10000 cycles
• Power dissipation per pole max: 0.96 W
• Operating temperature min: -40 00b0C
• Operating temperature max: +70 00b0C
• Storage temperature min: -40 00b0C
• Storage temperature max: +80 00b0C
• Max altitude: 2000 m
• Operating position: Vertical plan
• Fixing: 35mm DIN rail
• Tightening torque for terminals min: 1.8 Nm
• Tightening torque for terminals max: 2 Nm
• Terminals tool: Pz 2
• Conductor section IEC min: 1 mm 00b2
• Conductor section IEC max: 35 mm 00b2
• AWG/Kcmil min: 14
• AWG/Kcmil max: 6
• Mechanical life: 20000 cycles
• Frontal IP degree: IP20
• Pollution degree: 2
• Grid distance as per Annex H.1 of IEC/EN60898-1 standard: 60 mm
• ETIM 8.0: EC000042 - Miniature circuit breaker (MCB)
• UNSPSC Code: 39120000
• Brand: LOVATO Electric
• Characteristic: D curve
• Current Rating: 2 A
• Manufacturer Part Number: P1MB1PD02
• Number of Poles: 1 Pole
• Series: P1MB Series
• Range: P1MB
• kA Rating IEC/EN 60947-2: 10
• kA Rating IEC/EN 60898: 10
• Standards: IEC/EN60947-2, IEC/EN60898, UL 1077, CSA C22.2 No 235
• Maximum Flexible Cable: 16mm2
• Minimum Flexible Cable: 1mm2
• Operational Voltage Ue: 230VAC, 60VDC
• Insulation Voltage Ui: 440VAC
• Mounting: TS35 DIN Rail
• Height (mm): 86.5
• Width (mm): 18
• Depth (mm): 79.52
• EAN: 8013975202951
• Commodity code: 85362010
• Primary brand: Lovato
• Manufacturer product status: Commercialized
• Manufacturer description: MINIATURE CIRCUIT BREAKER 1P D 2A
