Lovato P1MB1PC04 Miniature Circuit Breaker 1P 4A

Product Description

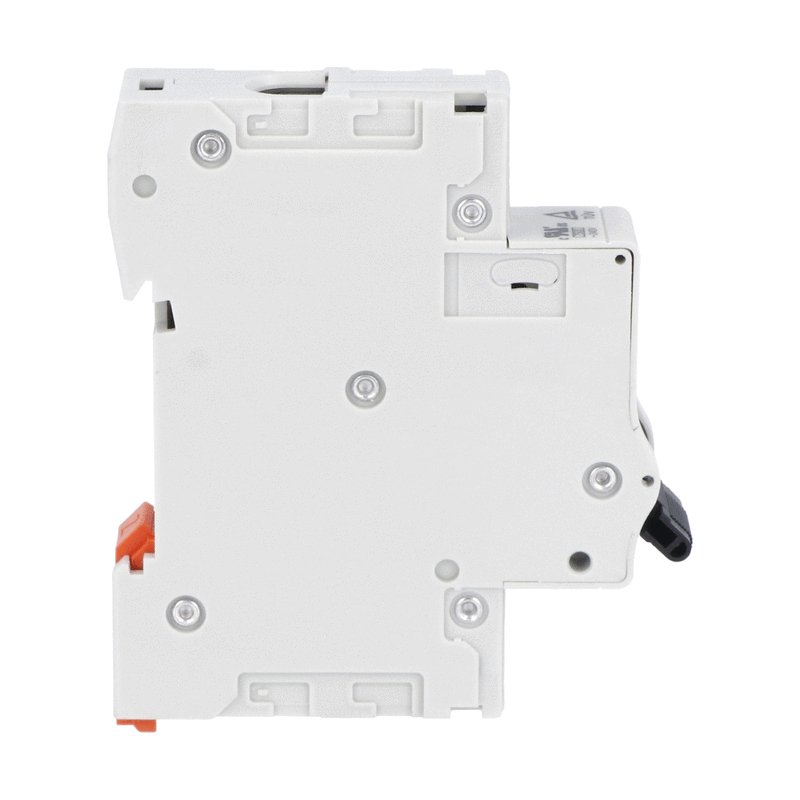

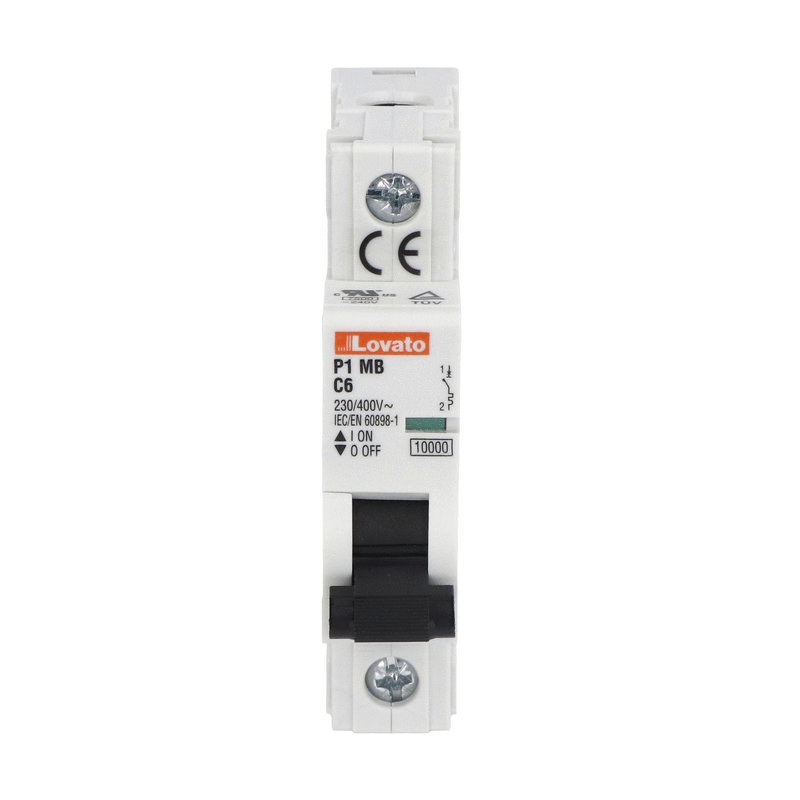

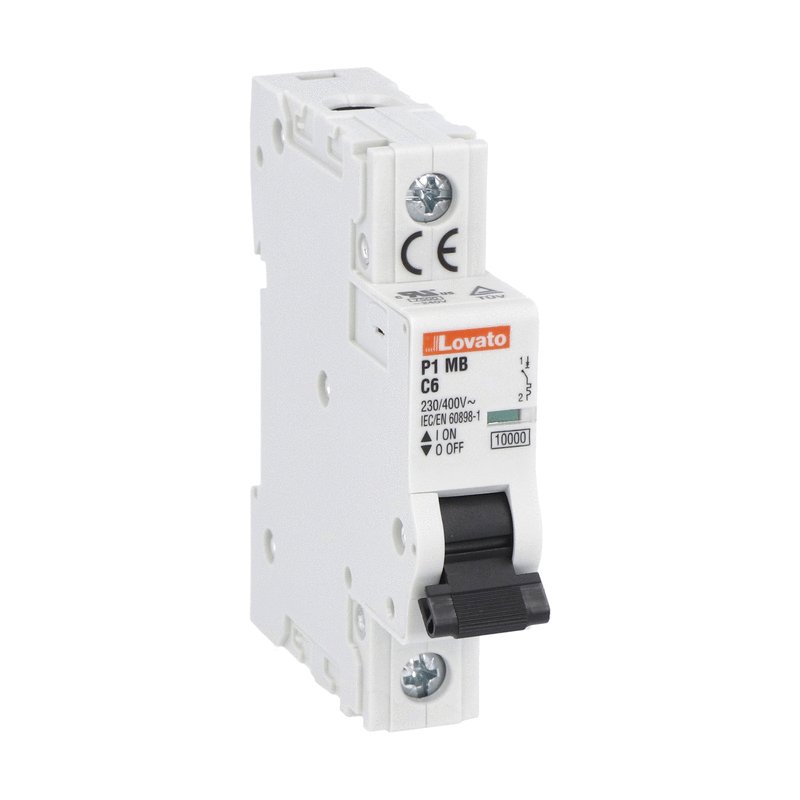

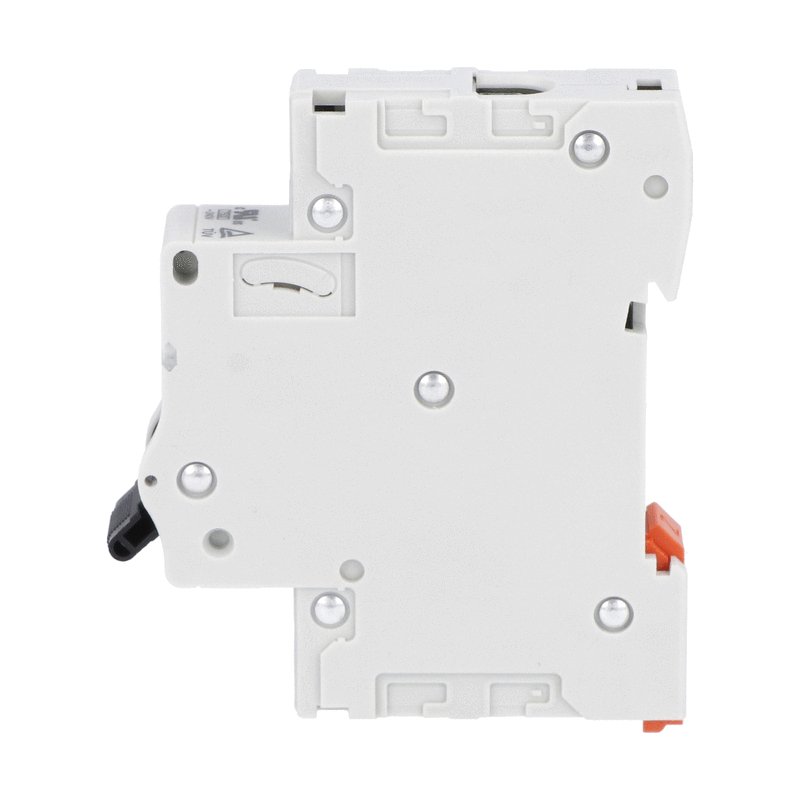

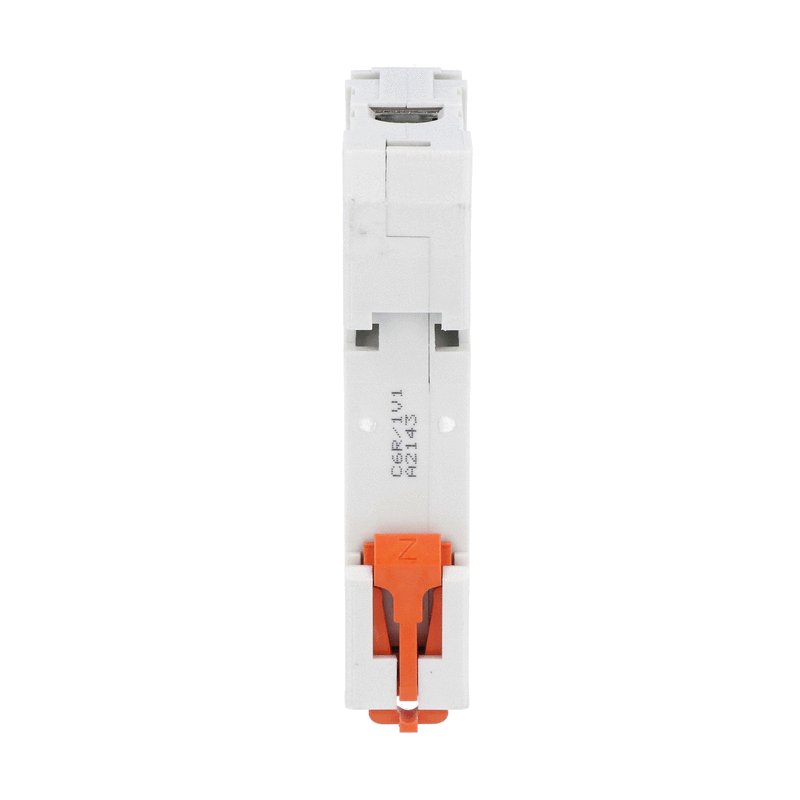

The LOVATO P1MB1PC04 is a miniature circuit breaker (MCB), 1P, 4A, with a C curve and 10kA breaking capacity, compliant with IEC/EN 60898-1, IEC/EN 60947-2, and UL 1077. It is a 1 module breaker designed for circuit protection in various applications. It operates with a lever and mounts on a DIN rail.

• 1P
• 10kA
• 1 module

Product Highlights

Miniature circuit breaker with 4A current rating and C curve for reliable circuit protection.

Product Information

Standard Information

• Brand: LOVATO
• Manufacturer Part Number: P1MB1PC04
• Country of Origin: ITALY

Technical Specifications

• Product designation: Miniature circuit breaker (MCB)
• Product type designation: P1 MB
• Number of poles: 1P
• Number of DIN modules: 1
• Compliance: IEC / UL1077
• Rated insulation voltage Ui IEC/EN: 440 V
• Rated impulse withstand voltage Uimp: 4 kV
• Rated operational voltage AC (IEC): 230 VAC
• Rated operational voltage DC: 80 VDC
• Rated frequency: 50/60 Hz
• Rated current (In): 4 A
• Tripping curve: C
• Short circuit rating (IEC): 10 kA
• Limiting class: 3
• Electrical life: 10000 cycles
• Power dissipation per pole max: 2.16 W
• Operating temperature min: -40 °C
• Operating temperature max: +70 °C
• Storage temperature min: -40 °C
• Storage temperature max: +80 °C
• Max altitude: 2000 m
• Operating position: normal Vertical plan
• Fixing: 35mm DIN rail
• Tightening torque for terminals min: 1.8 Nm
• Tightening torque for terminals max: 2 Nm
• Terminals tool: Pz 2
• Conductor section IEC min: 1 mm²
• Conductor section IEC max: 35 mm²
• AWG/Kcmil min: 14
• AWG/Kcmil max: 6
• Mechanical life: 20000 cycles
• Frontal IP degree: IP20
• Pollution degree: 2
• Grid distance as per Annex H.1 of IEC/EN60898-1 standard: 60 mm
• ETIM 8.0: EC000042 - Miniature circuit breaker (MCB)
• Brand: Lovato Electric
• Component Type: Miniature Circuit Breakers
• MPN: P1MB1PC04
• Condition: New
• Category: Circuit Protection
• Circuit Breakers: Circuit Breakers
• Current Rating (Amps): 4A
• Manufacturer: Lovato Electric
• Voltage Rating - AC: 230 V
• Series: P1MB1P
• Voltage Rating - DC: 60 V
• Packaging: Box
• Actuator Type: Lever
• Part Status: Active
• Mounting Type: DIN Rail
• Illumination: None
• Breaker Type: Thermal Magnetic
• Approval Agency: CSA C22.2 No. 235, cURus, EAC, IEC 60898-1, IEC 60947-2, TUV-Rheinland, UL 1077
