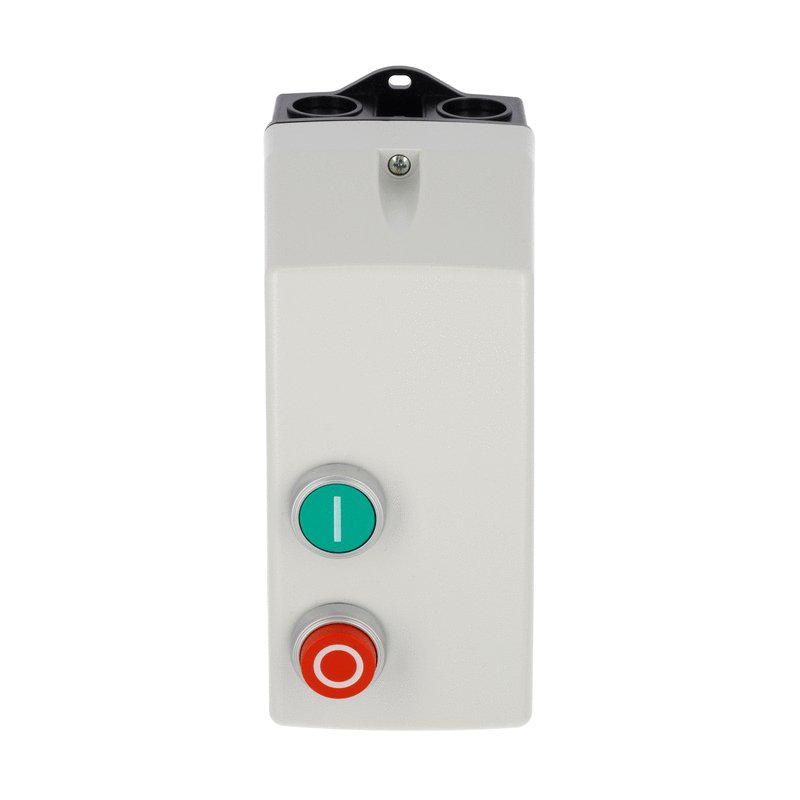

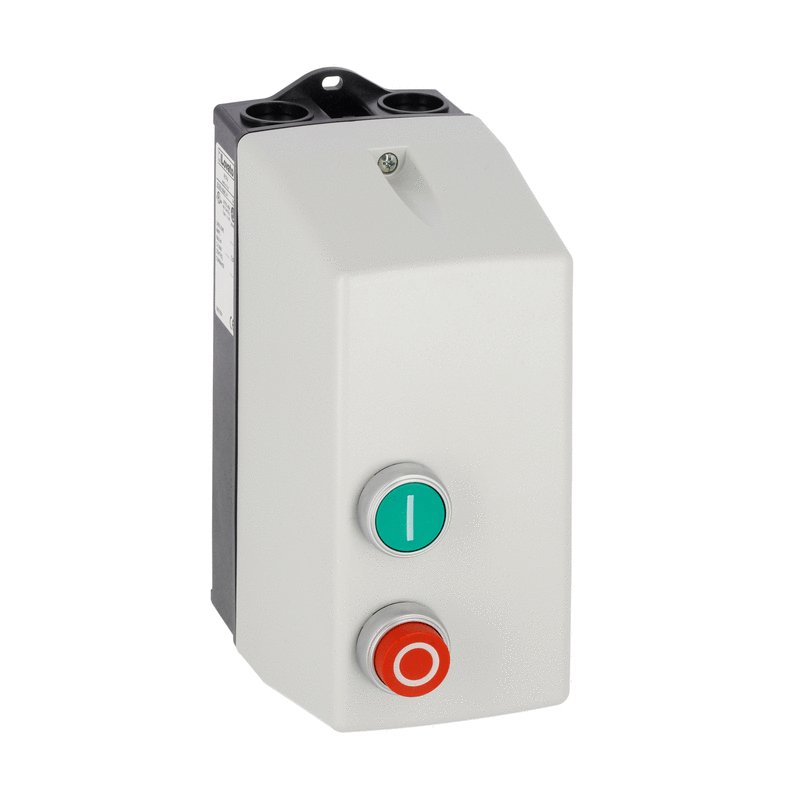

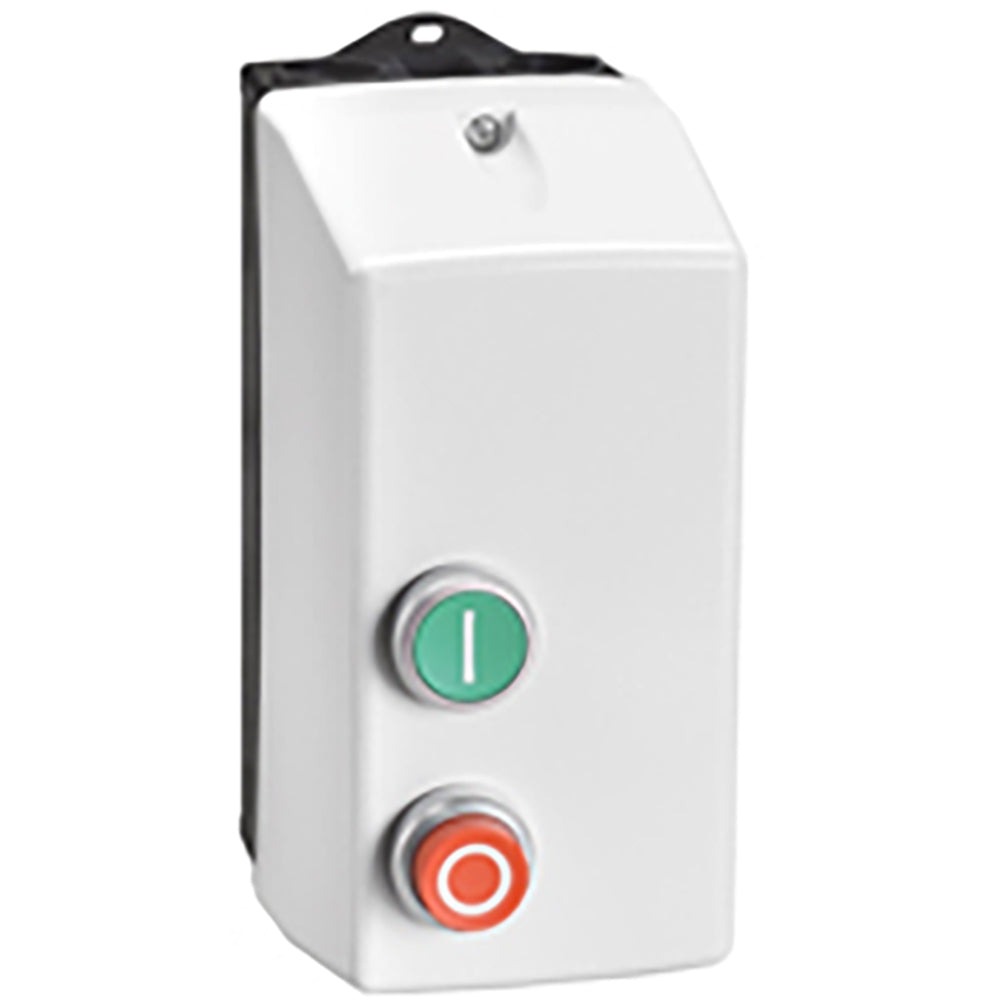

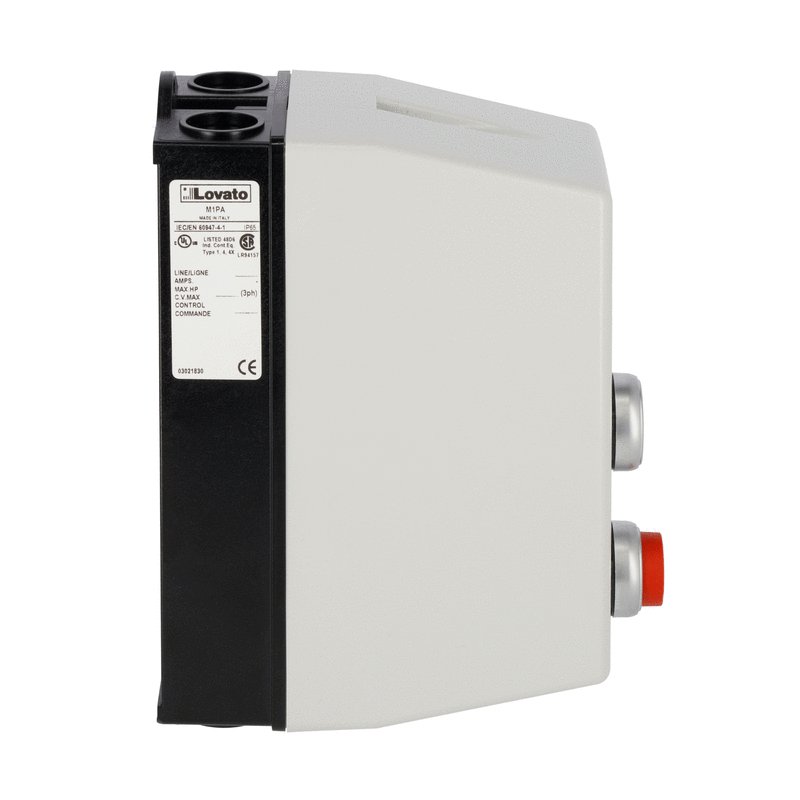

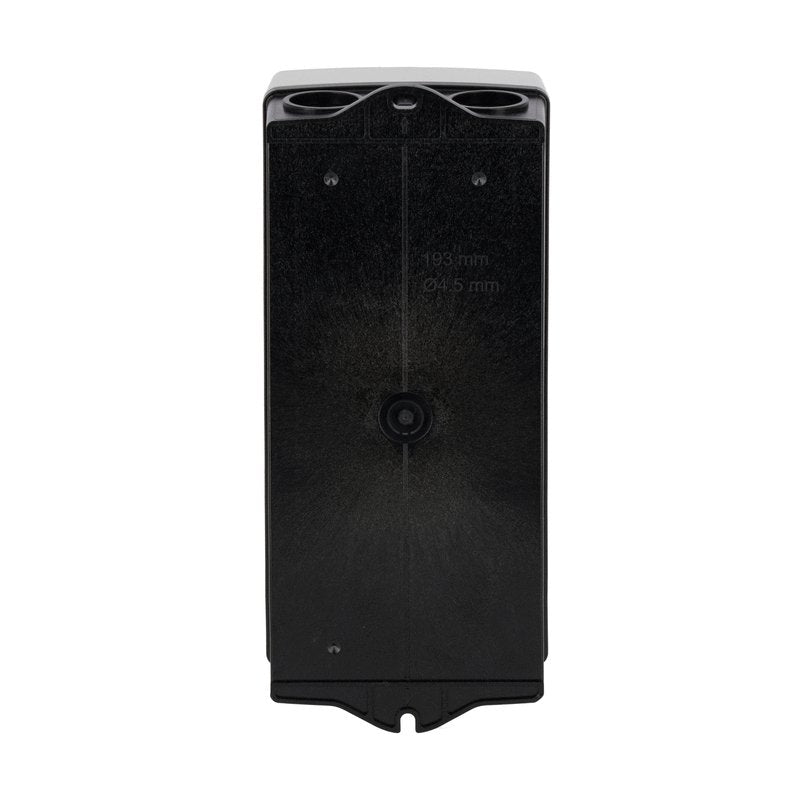

Lovato M1P0181223060B1 Direct-on-line Starter 7.5 kW (13-18 A) LOVM1P0181223060B1

Product Description

The Lovato M1P0181223060B1 is a direct-on-line starter supplied in a non-metallic IP65 enclosure for motor starting and protection. It includes a BF1810A contactor with a 230 VAC 50/60 Hz coil and an RF381800 thermal overload relay adjustable 13–18 A (IEC AC3 18 A / 7.5 kW at 400 V). The enclosed unit provides Start-Stop/Reset pushbuttons and is suitable for industrial motor control and protection, compliant with IEC/EN standards.

• Contactor BF1810A with 230 VAC 50/60 Hz AC coil
• Thermal overload relay RF381800 adjustable 13–18 A (IEC AC3 18 A / 7.5 kW at 400 V)
• Non-metallic IP65 enclosure with Start-Stop/Reset pushbuttons; conforms to IEC/EN 60947-1 and IEC/EN 60947-4-1

Product Highlights

Enclosed IP65 direct-on-line starter, 230 VAC coil, 13–18 A thermal adjustment, includes BF1810A contactor and RF381800 overload

Product Information

Standard Information

• Brand: LOVATO
• Manufacturer Part Number: M1P0181223060B1
• Country of Origin: Italy

Technical Specifications

• Brand: Lovato
• Manufacturer Part Number: M1P0181223060B1
• Product Type: Direct-on-line starter
• Starter Type: Enclosed with thermal overload relay
• Phase: 3 Phase
• Poles: 3
• Contactor: BF1810A
• Contactor Coil Voltage: 230 VAC 50/60 Hz
• Thermal Overload Relay: RF381800
• Relay Adjustment Range (A): 13-18 A
• IEC operating current (AC3) 400V: 18 A
• Power Rating (kW): 7.5 kW
• IEC Degree of Protection: IP65
• Operating Temperature: -25 to +60 C
• Storage Temperature: -40 to +70 C
• Starter enclosure standard supplied: M1PA
• Contactor standard supplied: BF1810A
• Thermal relay standard supplied: RF381800
• Certifications: cULus, CSAus, EAC
• Standards / Conformity: IEC/EN 60947-1; IEC/EN 60947-4-1
• ETIM classification: ETIM 8.0 EC001037 - Motor starter/Motor starter combination
• Order code: M1P0181223060B1
• HS Code: 85371098
• EAN/GTIN: 8013975188859
• Country of Origin: Italy
• Weight (g): 1036
• Package dimensions (mm): 206 x 92 x 170
