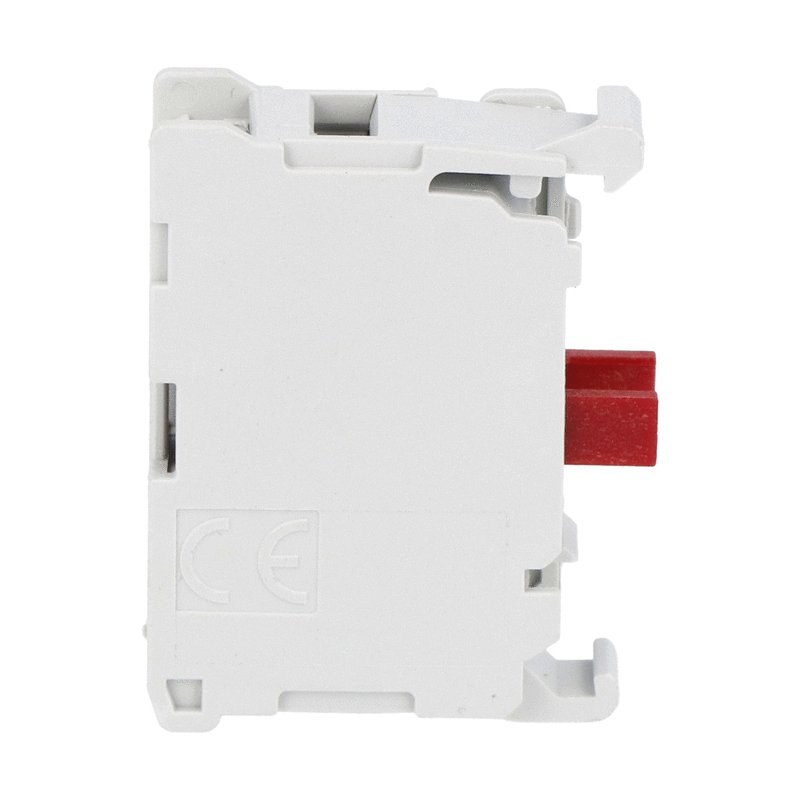

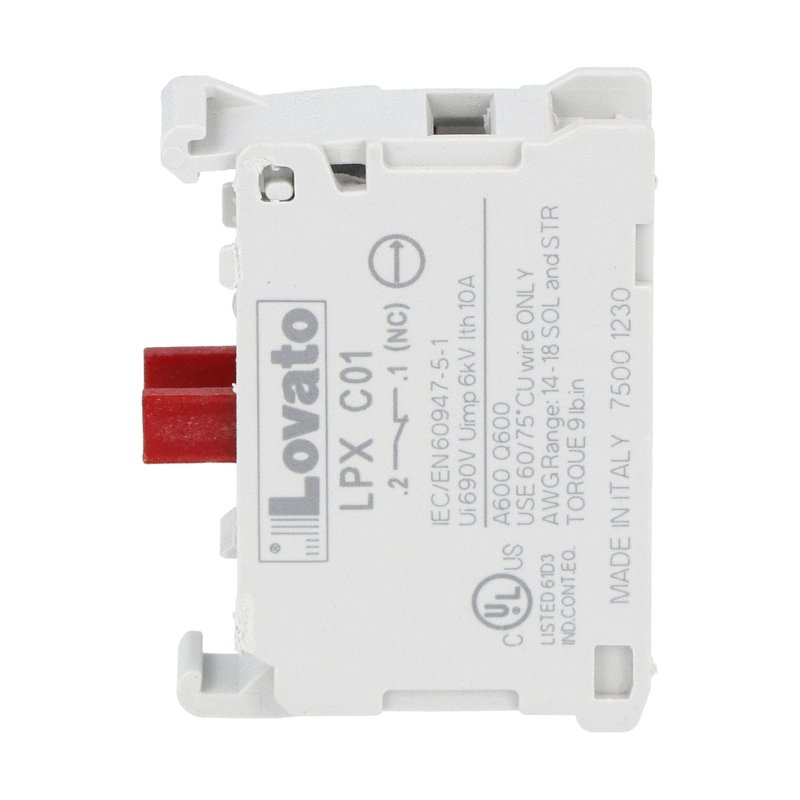

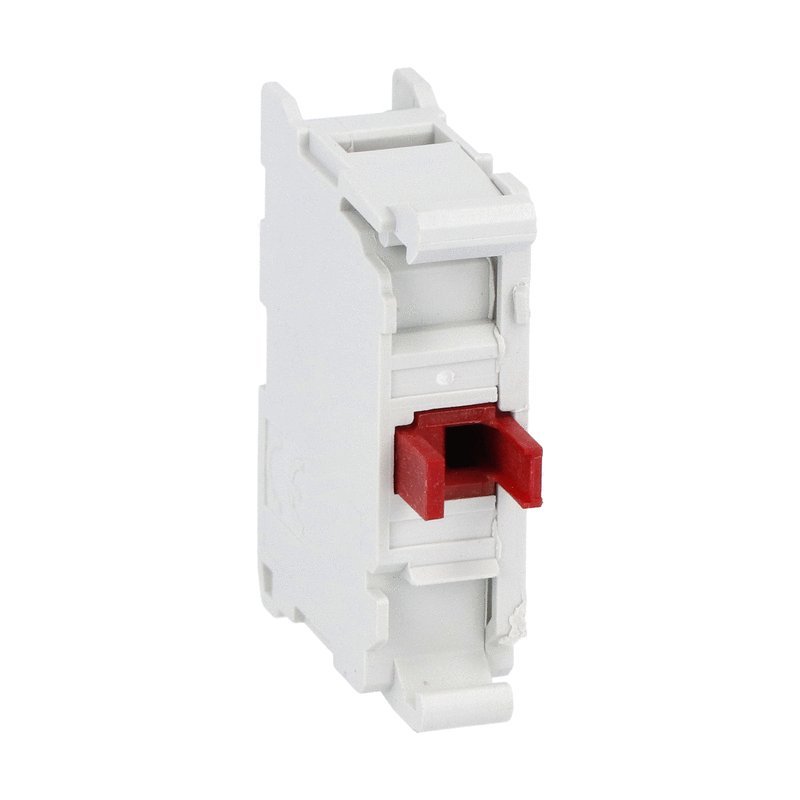

Lovato LPXC01 Contact Element ø22mm Platinum Series, Nc. Screw Termination

Product Description

The LOVATO LPXC01 is a contact element for pushbuttons and selector switches from the Platinum series. This normally closed (NC) contact element features screw termination. It is designed for use with LPC, LPS, and LPF series accessories.

• Contact element Ø22mm Platinum series
• NC (Normally Closed) contact
• Screw termination

Product Highlights

Contact element with screw termination for pushbuttons and selector switches.

Product Information

Standard Information

• Brand: LOVATO
• Manufacturer Part Number: LPXC01
• Country of Origin: ITALY

Technical Specifications

• Type of product: Contact elements
• Type of terminals: Screw
• Complete with mounting adapter: No
• Type of accessories: Contact element
• Accessories for: LPC ; LPS ; LPF
• Rated insulation voltage Ui IEC/EN: 690 V
• IEC Conventional free air thermal current Ith 40 C: 10 A
• UL/CSA and IEC/EN 60947-5-1 designation: A600 Q600
• Operating current AC15 12V: 6 A
• Operating current AC15 24V: 6 A
• Operating current AC15 48V: 6 A
• Operating current AC15 120V: 6 A
• Operating current AC15 240V: 6 A
• Operating current AC15 400V: 3 A
• Operating current AC15 480V: 1.5 A
• Operating current AC15 500V: 1.4 A
• Operating current AC15 600V: 1.2 A
• Operating current DC13 12V: 3 A
• Operating current DC13 24V: 3 A
• Operating current DC13 48V: 1.5 A
• Operating current DC13 125V: 0.55 A
• Operating current DC13 250V: 0.27 A
• Operating current DC13 440V: 0.15 A
• Operating current DC13 500V: 0.13 A
• Operating current DC13 600V: 0.1 A
• Contact resistance: 20 mΩ
• Electrical life: 1000000 cycles
• Operating force: 0.5Kg/1.1Ib
• Tightening torque for terminals max: 1 Nm
• Terminals screw: Screw
• Conductor section AWG/kcmil conductor section max: 14
• Conductor section IEC max: 1 or 2 / 2.5 mm²
• Mounting adapter: LPXAU120
• Operating temperature min: -25 °C
• Operating temperature max: +70 °C
• Storage temperature min: -40 °C
• Storage temperature max: +85 °C
• ETIM 8.0: EC000041 - Auxiliary contact block
• UNSPSC Code: 39120000
• Brand: LOVATO Electric
• Contact Form: NC
• Manufacturer Part Number: LPXC01
• Series: LPXC Series
• Termination: screw
• Unit of Measure: EA
• Component Type: Contact Element
• Category: Switches
• Part Status: Active
• Accessory Type: Contact Block
• For Use With/Related Products: LPC, LPF and LPS Series
• Country of Origin: Italy
