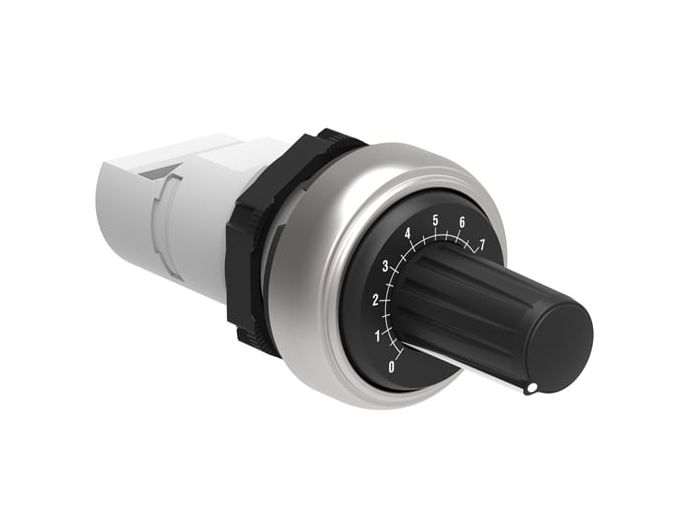

Lovato LPCPA010 Potentiometer 22mm Platinum, With Graduated Scale 10Kohm

Product Description

The LOVATO Electric LPCPA010 is a monoblock potentiometer with a 22mm platinum finish and a graduated scale, featuring a 10Kohm resistance. It is designed for panel fitting with a fixing ring and built-in terminal block. Constructed with high-quality cermet materials, it offers excellent heat dissipation and durability.

• Compact design for direct panel fitting.
• Features a 1-turn graduated scale.
• Offers IP66, IP67, and IP69K front protection.

Product Highlights

This potentiometer is ideal for voltage regulation in various devices and applications, offering robust performance in harsh environments.

Product Information

Standard Information

• Brand: LOVATO
• Manufacturer Part Number: LPCPA010
• Country of Origin: Italy

Technical Specifications

• Manufacturer Part Number: LPCPA010
• Brand: LOVATO Electric
• Actuator Type: Potentiometer
• Mounting Hole Size: 22 mm
• Resistance: 10 kOhm
• Series: LPC Series
• Product Series: LPCPA
• Description: Potentiometer Operator, 10K Ohm, 22mm Mounting
• Tolerance %: 10 %
• Wattage: 1 W
• Number of Turns: 1
• Composition: Cermet
• Lead Type: Screw Terminals
• Operating Temperature: -13-158 °F
• Operator Type: Knob
• Operator Color: Black
• Mounting: 22 mm
• Bezel: Round Chrome
• Approvals: CSA, cULus, EAC
