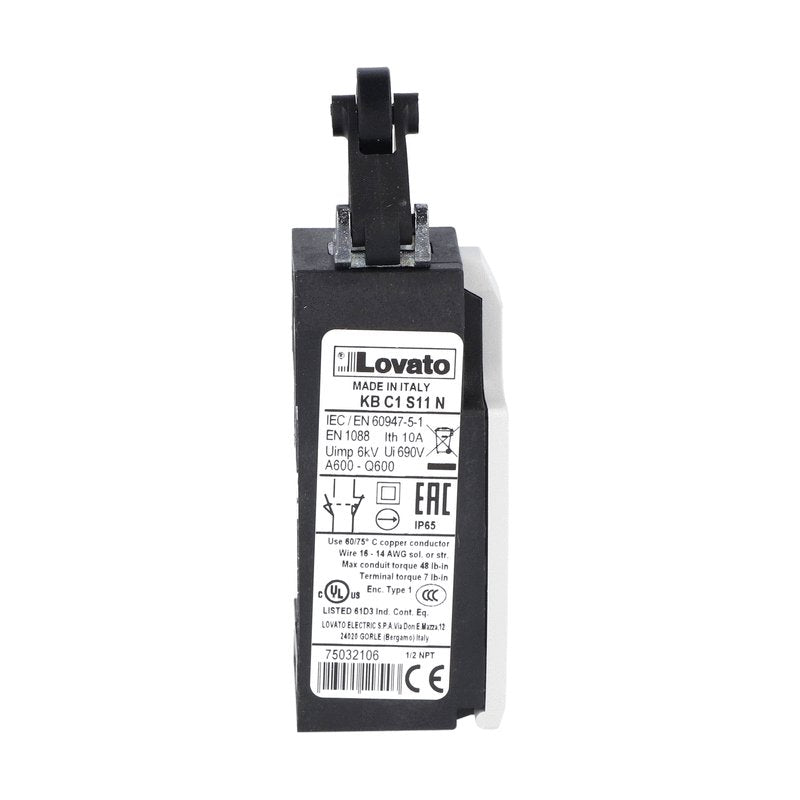

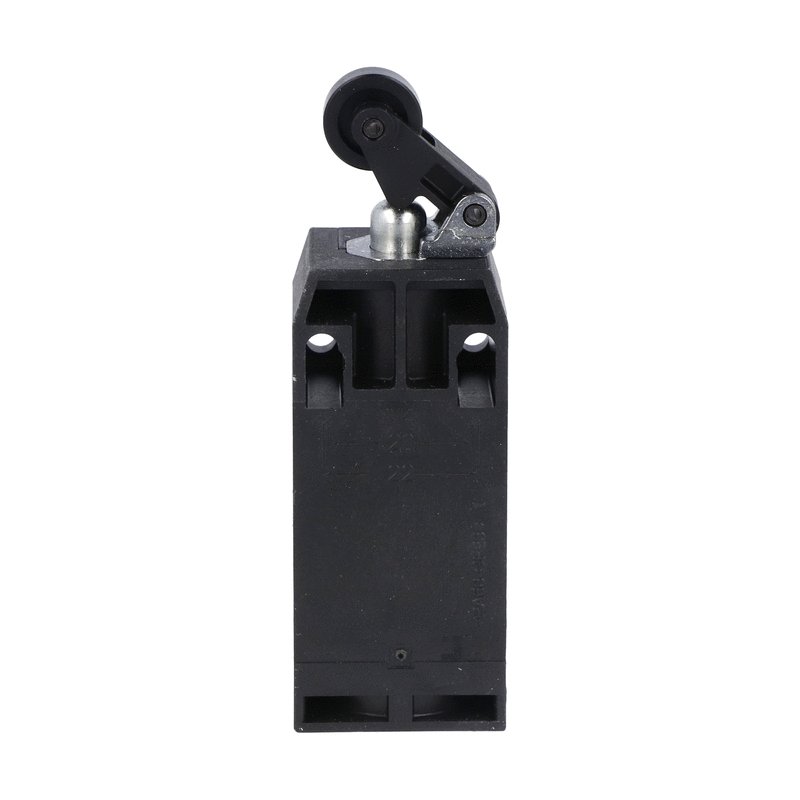

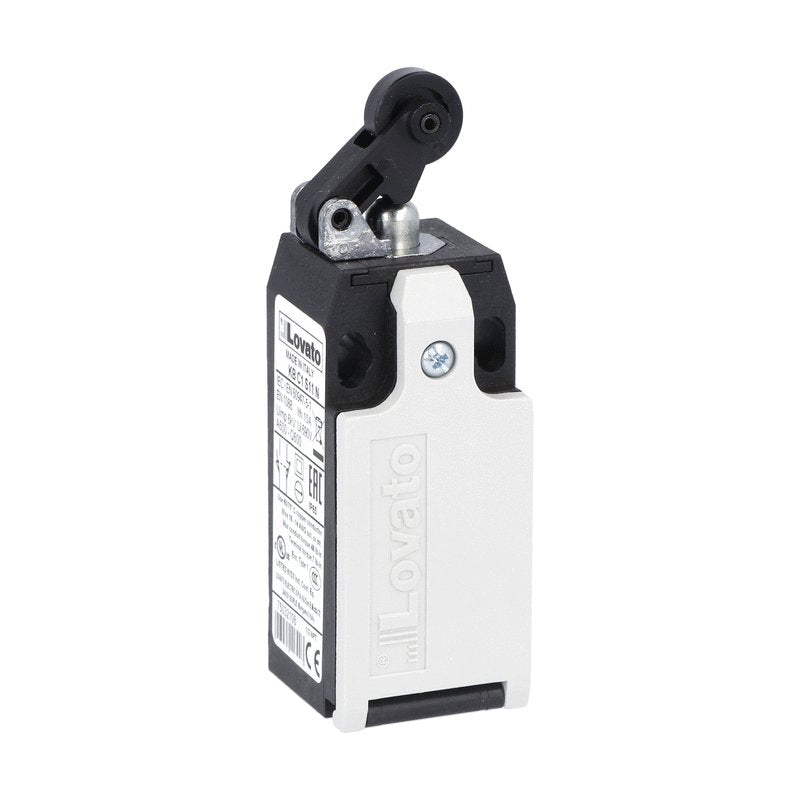

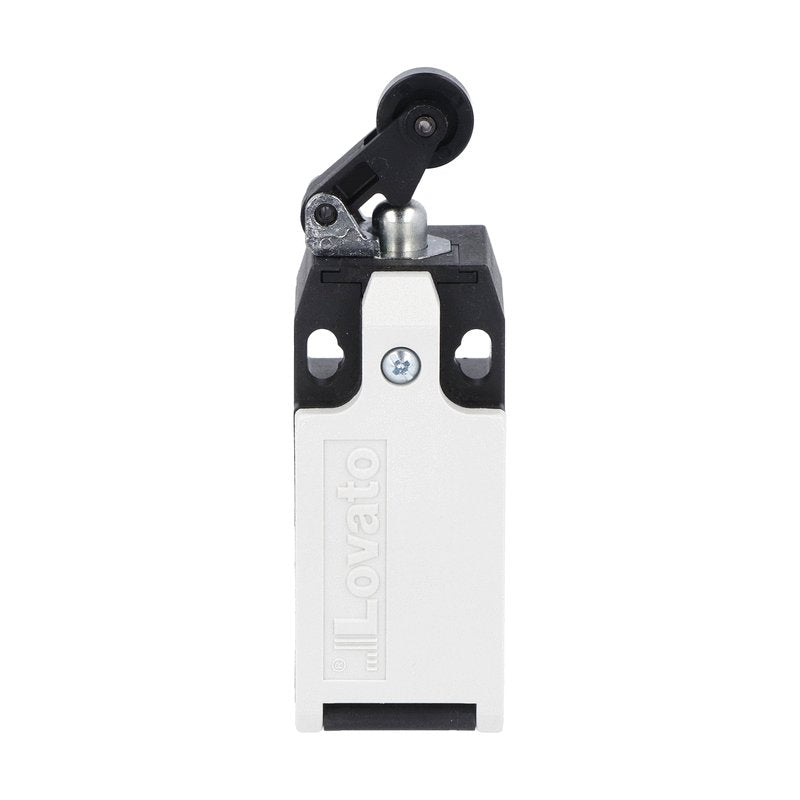

Lovato KBC1S11N Limit Switch Roller Center Push Lever

Product Description

The LOVATO KBC1S11N is a limit switch designed for quick installation, easy wiring, and simple setup. It features a roller center push lever and removable auxiliary contact blocks. The body cover is hinged at the bottom and removable for ease of access. It is suitable for various applications requiring precise position detection.

• Removable and Interchangeable Auxiliary Contact Blocks
• Dimensions to EN 50047 Standards for KB types
• Polymer Thermoplastic Housing

Product Highlights

Designed for quick installation, easy wiring, and simple setup. Features a roller center push lever and removable auxiliary contact blocks.

Product Information

Standard Information

• Brand: LOVATO
• Manufacturer Part Number: KBC1S11N
• Country of Origin: Canada

Technical Specifications

• Actuator Type: Roller Center Push Lever
• Brand: Lovato Electric
• Component Type: Limit Switch
• Contact Type: 1 N.O./1 N.C.
• Material: Plastic
• Lovato Product Series: Lovato K Series Limit Switch
• Manufacturer Part Number: KBC1S11N
• Manufacturer: Lovato
• Product Series: KB
• Family Series: Lovato Limit Switches, KB Series
• Description: Pl Roller Center Lever 1-N/O+1-N/C Len1/2Npt
• Contacts: 1NO/1NC
• Connection Type: Screw Terminals
• Conduit Fitting: 1/2 NPT
• Indicator: No
• Approvals: CSA, cUL, UL
• Housing material: Polymer thermoplastic
• Net Weight: 0.135 lbs
• Gross Weight: 0.16 lbs
• Roller material: Plastic
• Type of contacts: 1NO+1NC Snap action
• Cable entry: M20 on the bottom
• Thermal current Ith: 10 A
• IEC/EN 60947-5-1 designation: A600 Q600
• Rated insulation voltage Ui: 690 V
• Rated impulse withstand voltage Uimp: 6 kV
• Insulation class: II
• Short-circuit protection with fuse: 10 gG/SC QUICK FUSE
• Switching speed min: 0.5 m/s
• Switching speed max: 1.5 m/s
• IEC Conventional free air thermal current Ith 40 C: 10 A
• Resistance per pole (average value): <10 m
• Operating head fixing: Locking bayonet insert
• Operating torque: 6 N
• Tightening torque (Max) Switch fixing: 2.5 Nm
• Contact terminals: 0.8 Nm
• Body lid screw fixing: 0.8 Nm
• Conductor section min: 16 AWG/Kcmil
• Conductor section max: 14 AWG/Kcmil
• Conductor section IEC min: 1.5 mm
• Conductor section IEC max: 2.5 mm
• Cable connection: Self-releasing screw terminal
• Mechanical life: <10000000 cycles
• Mechanical operation: 3600 cycles/h
• Operating temperature min: -25 C
• Operating temperature max: +70 C
• Storage temperature min: -40 C
• Storage temperature max: +70 C
• Terminals IP degree: IP20
• Body housing IP degree: IP65
• Pollution degree: 3
• ETIM 8.0: EC000030 - End switch
• Part #: KBC1S11N
• Category: Limit Switch
• RoHS: Yes
• COO: IT
• ECCN: EAR99
• Type of product: Metal and plastic limit switches
• Product characteristics: Roller centre push lever
